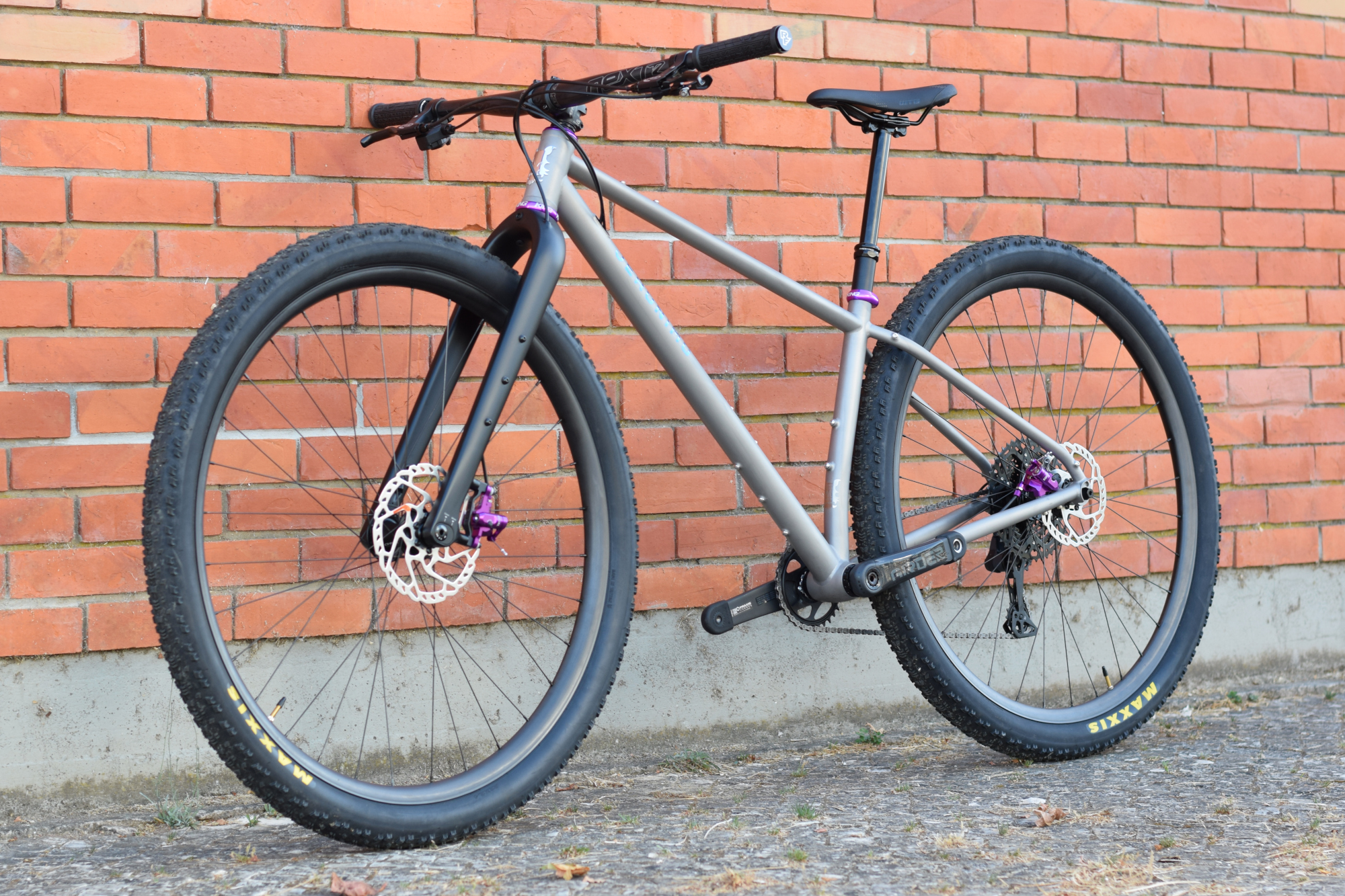

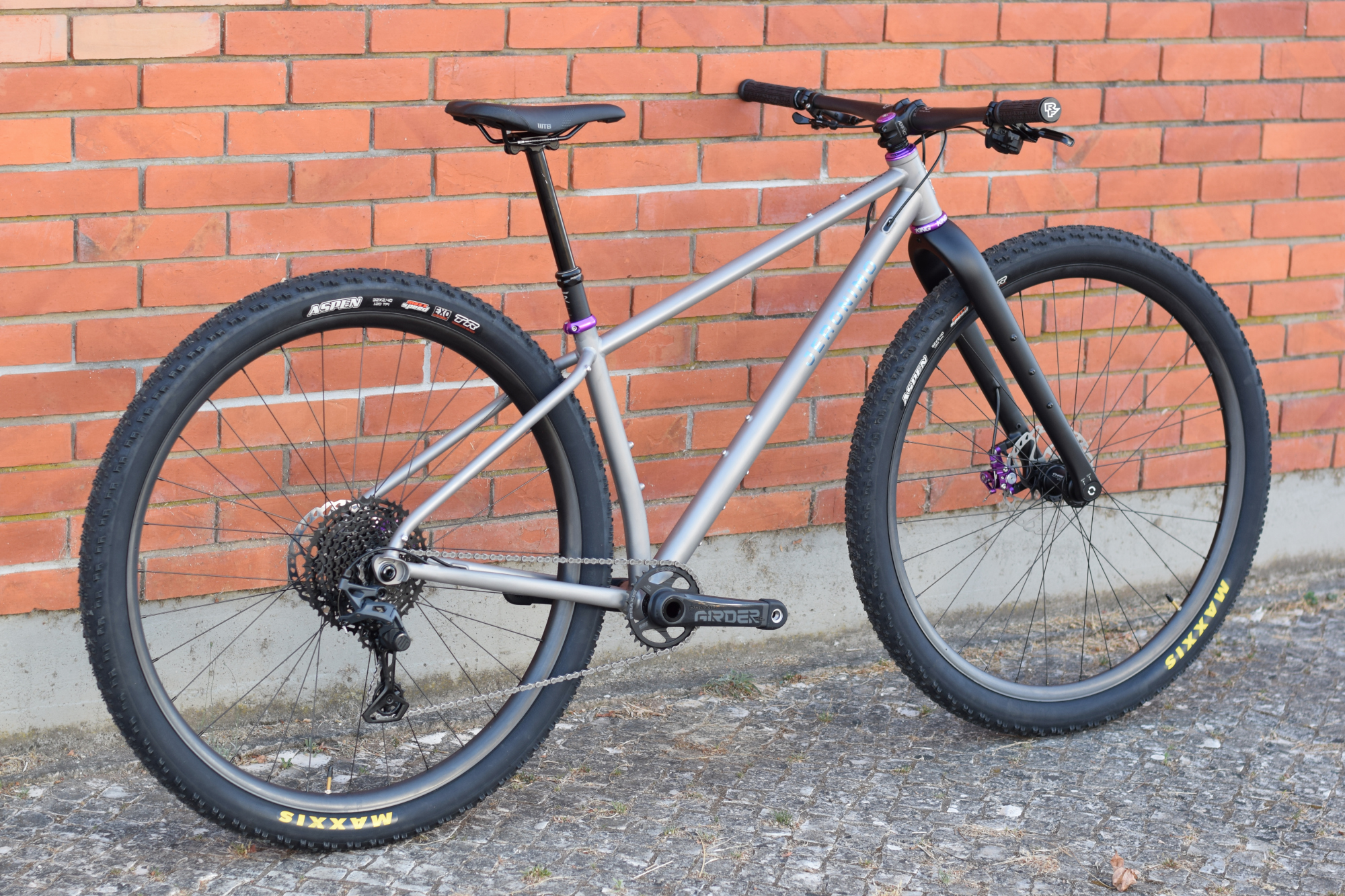

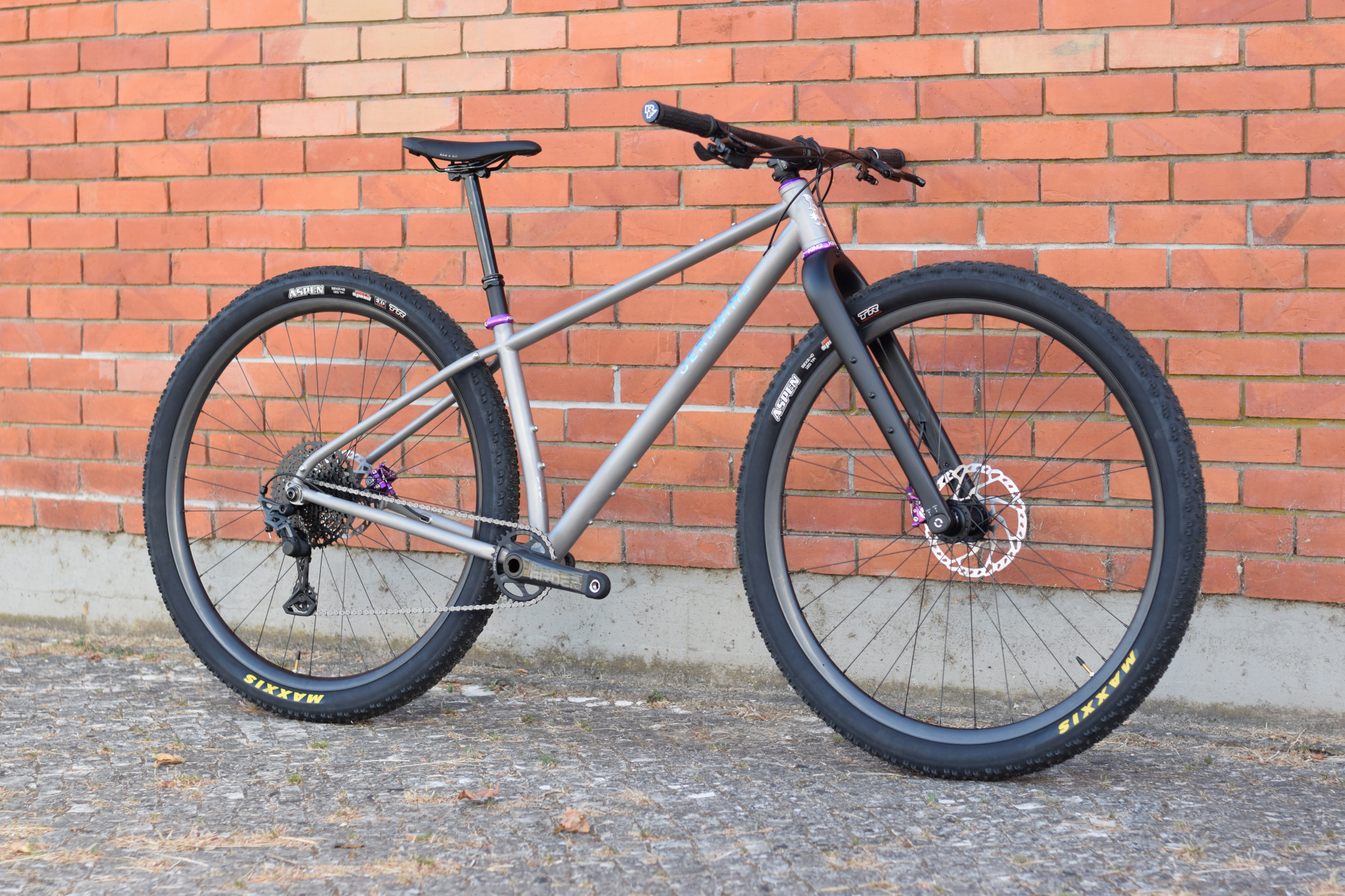

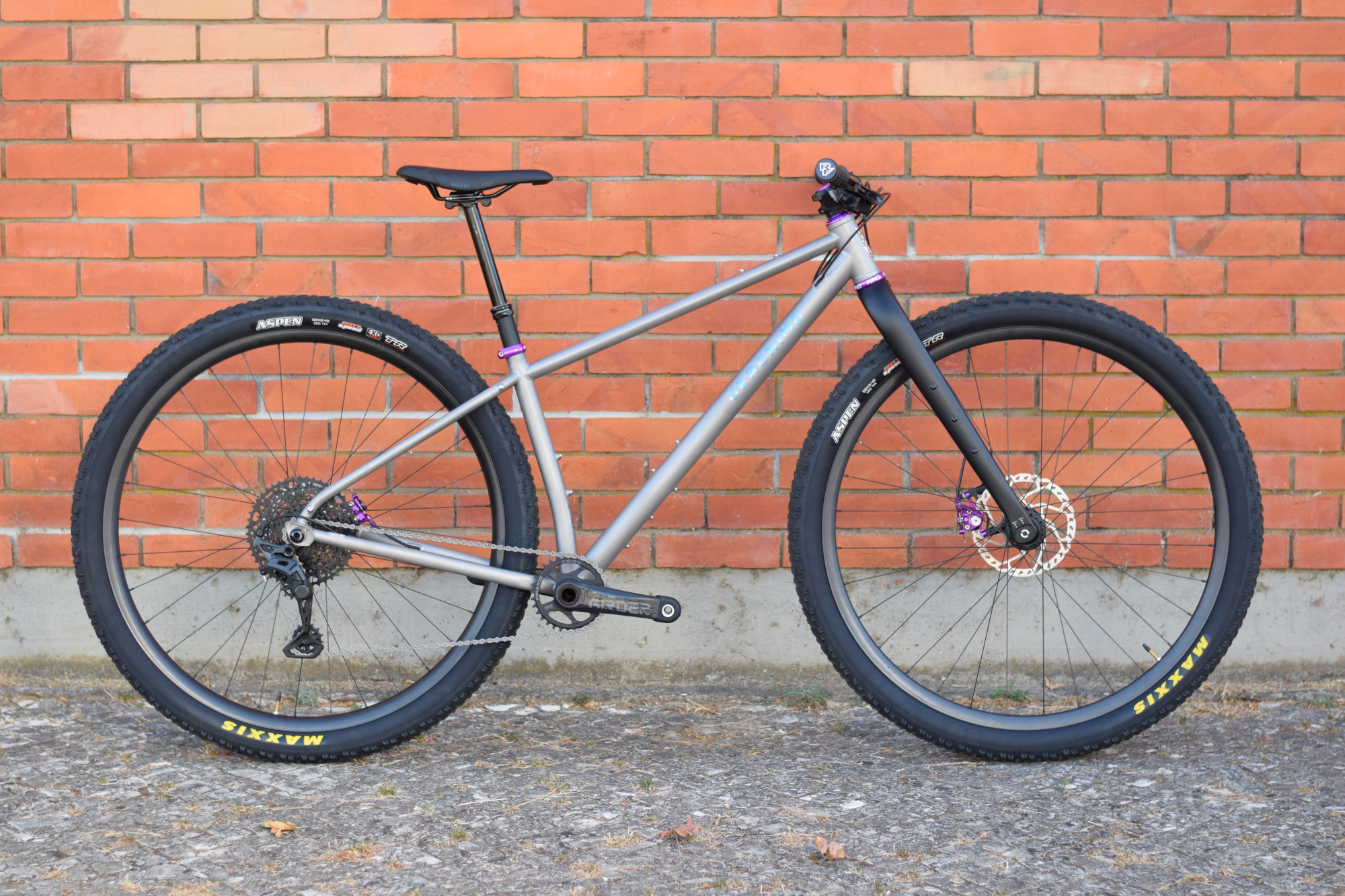

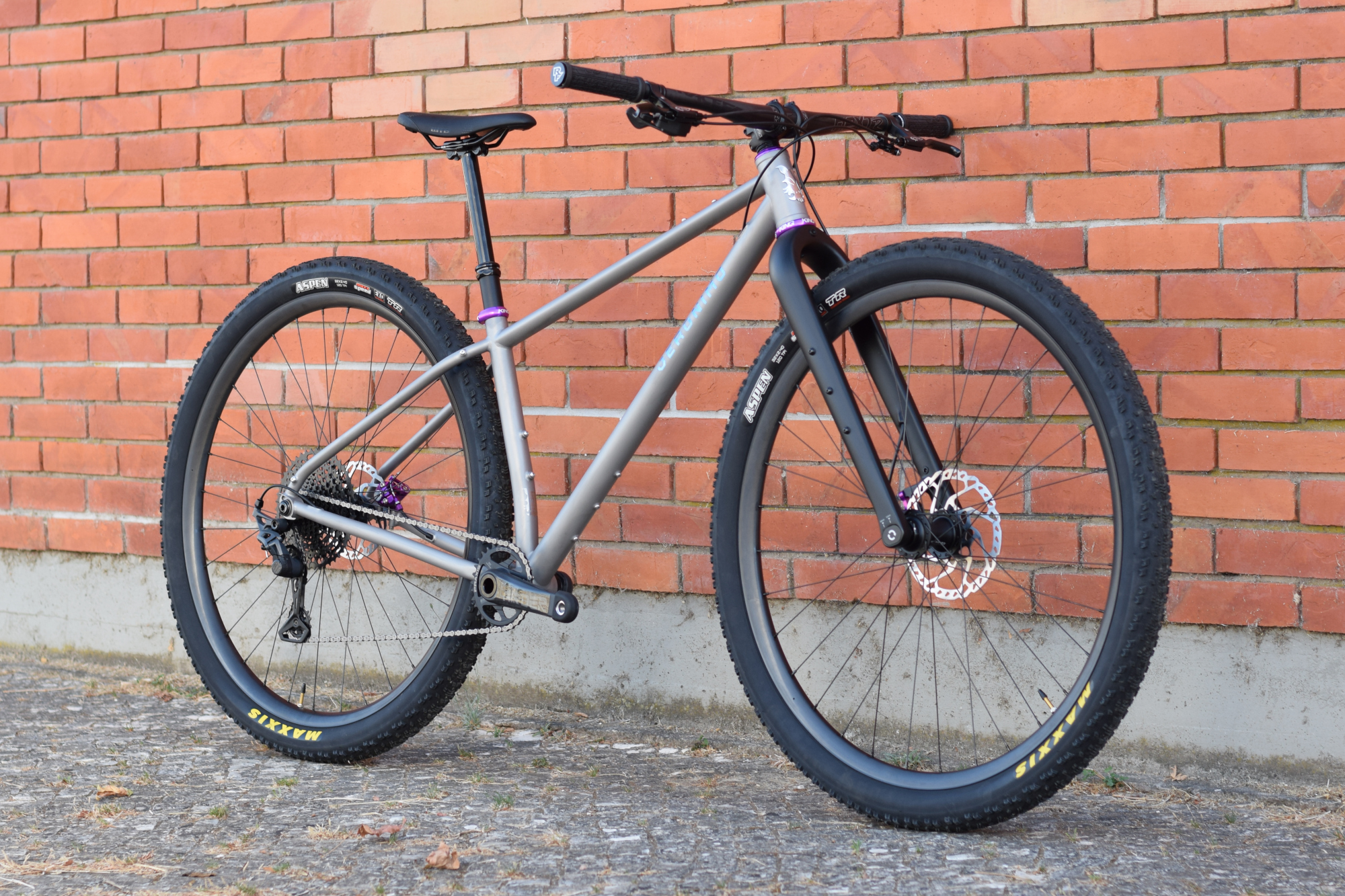

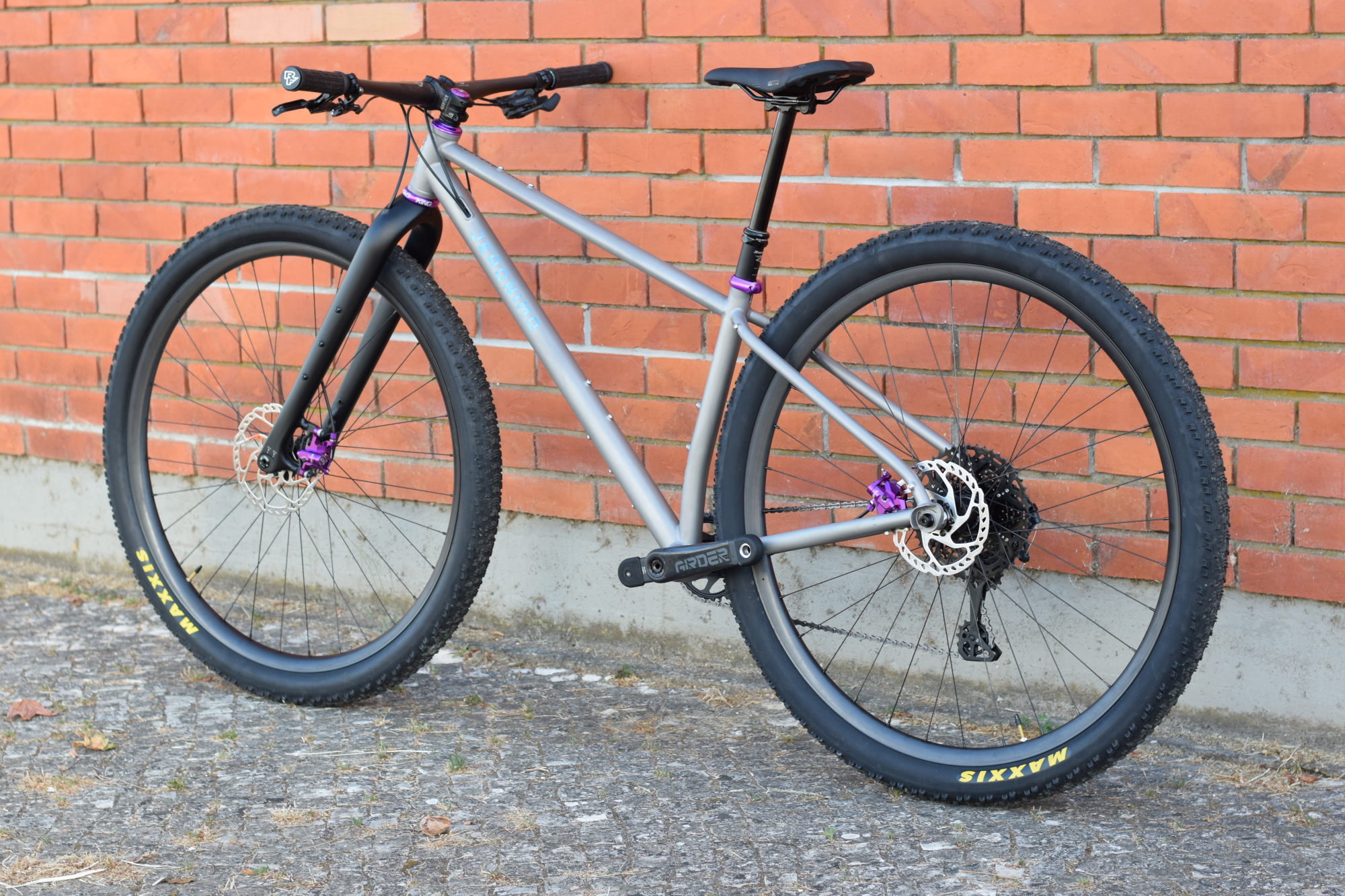

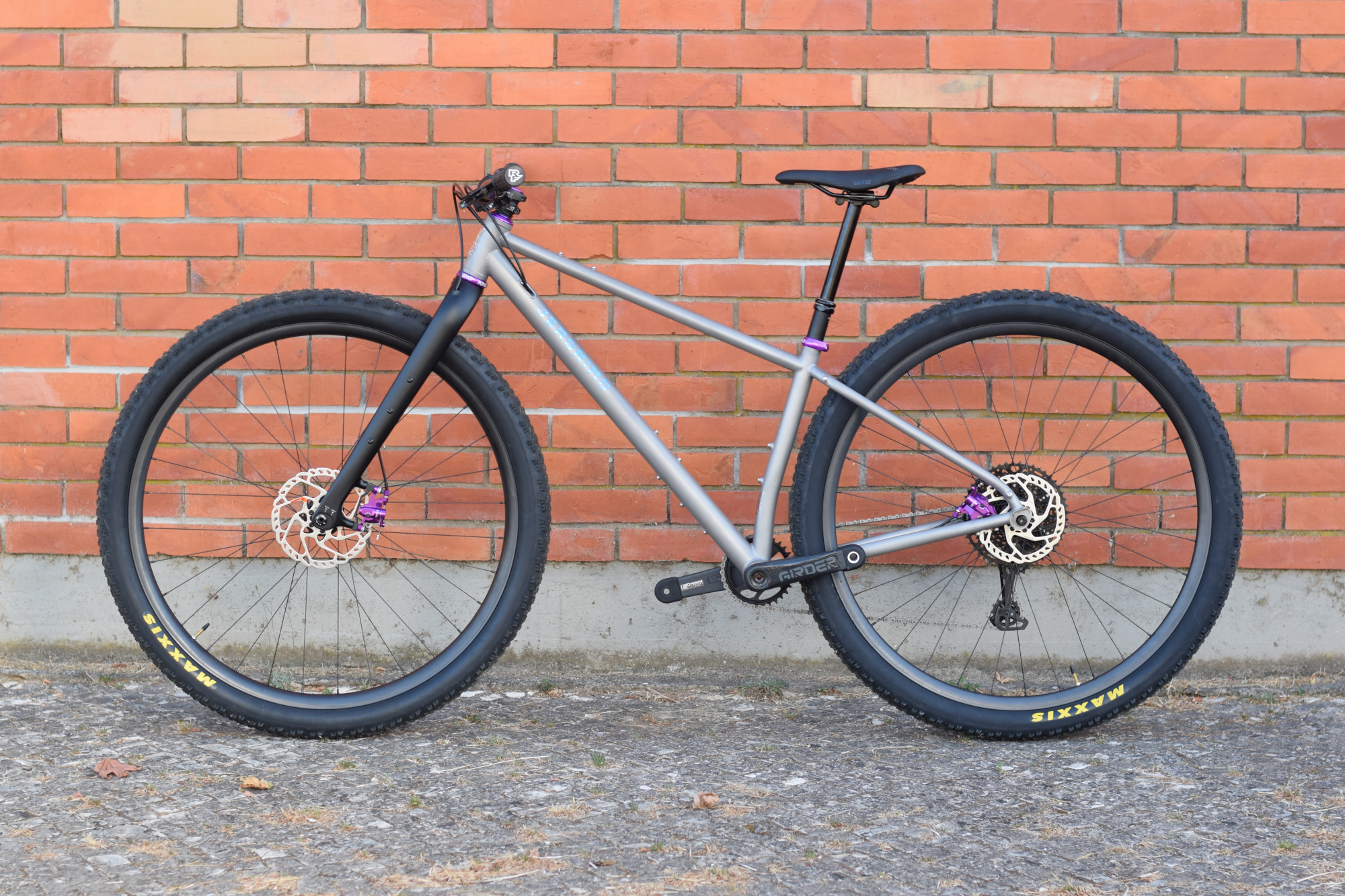

The Lorenzo Ti frame is a “downcountry” model for 32″ wheelset size with a passion for travel and bikepacking.

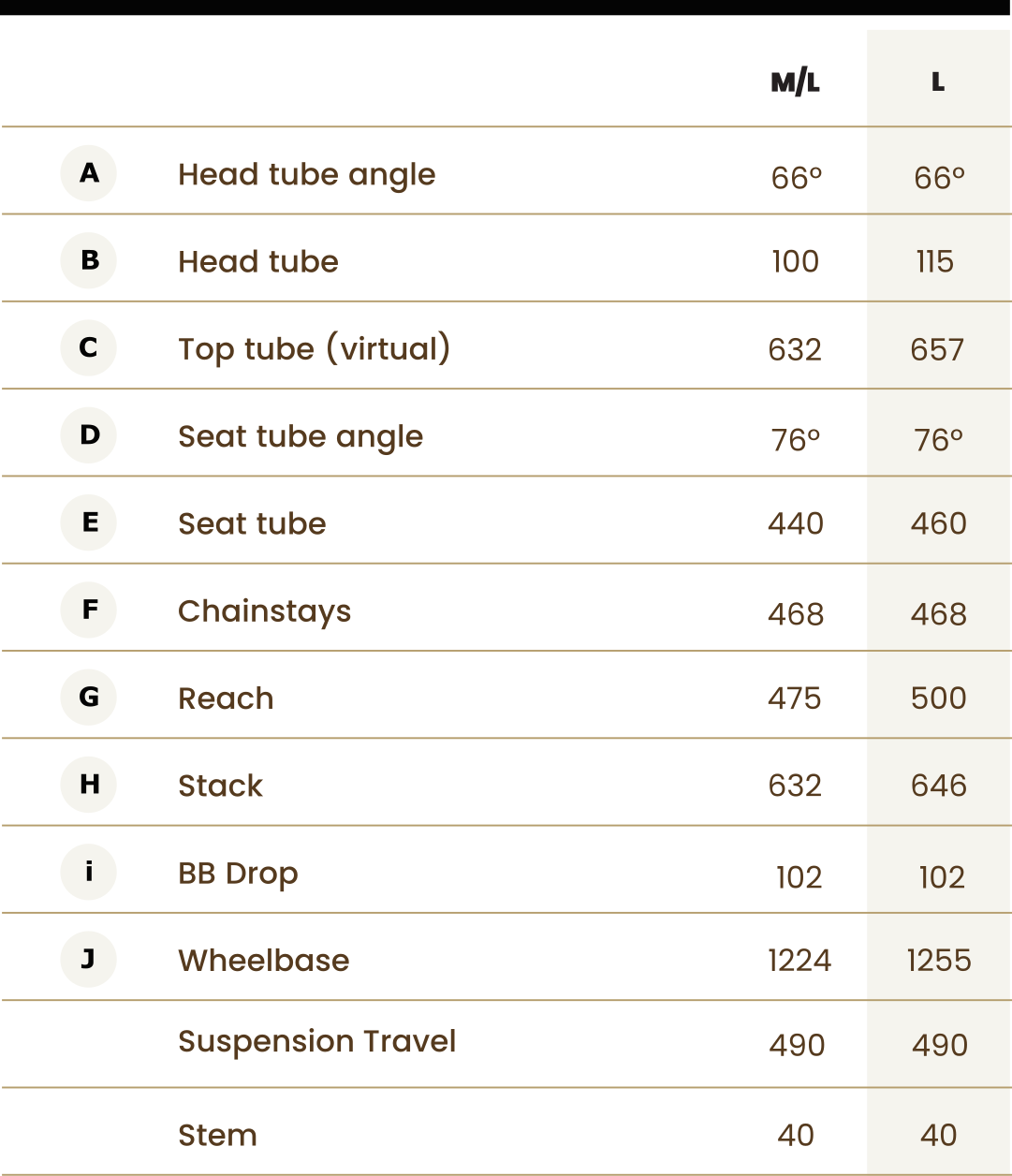

With short 468 mm chainstays for 32″ wheels and a 76º seat tube angle for fast climbing, plus an extra-long top tube, a 40 mm stem and a 66º head tube angle for 490 mm to 530 mm forks, the Lorenzo Ti climbs quickly and stays confident on the descents.

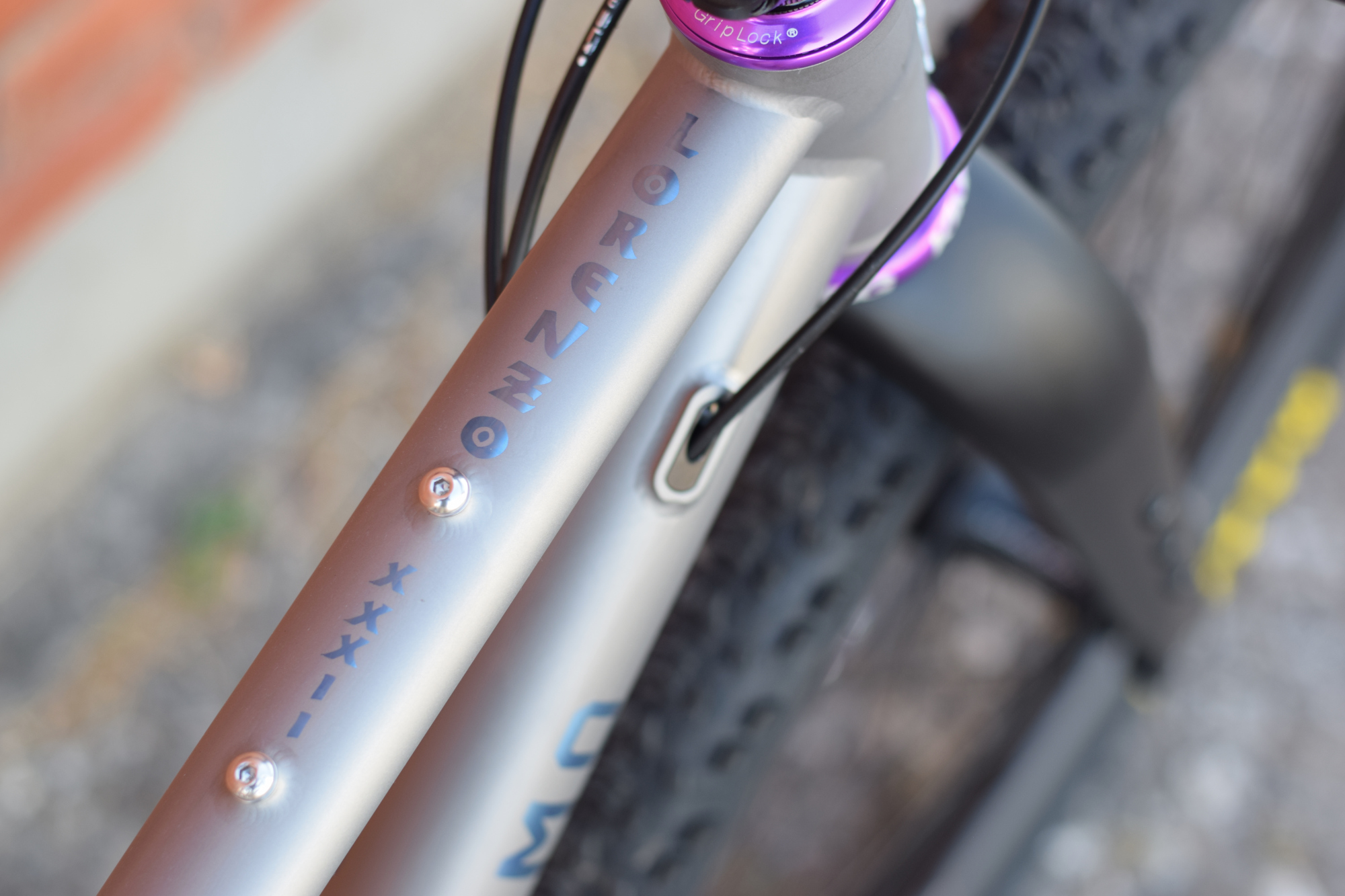

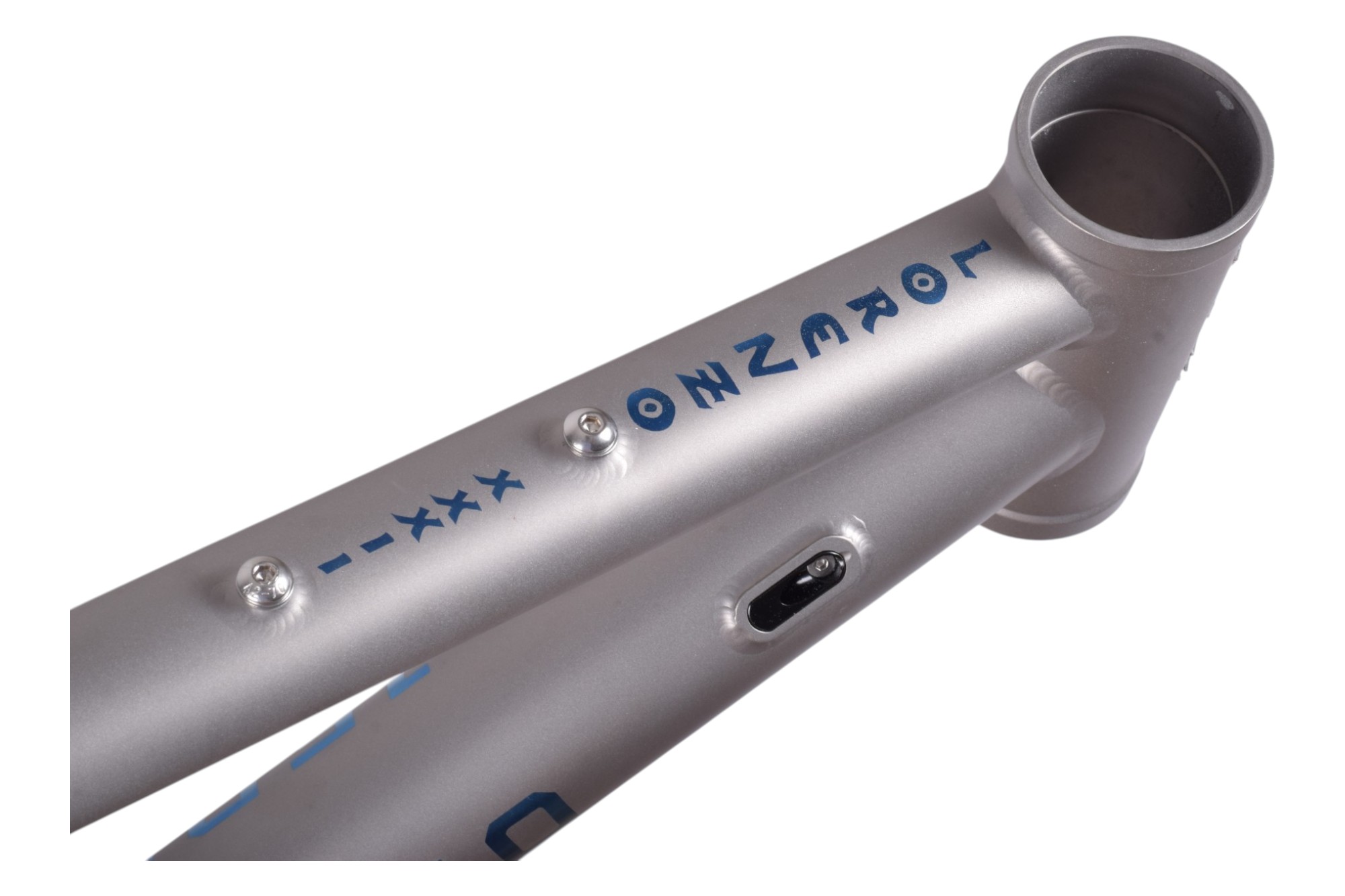

You can also carry panniers on this frame, thanks to the eyelets on the seat stays that let you mount a rack. If you prefer a frame bag instead, the Lorenzo Ti features internal cable routing, keeping everything clean and easy to set up.

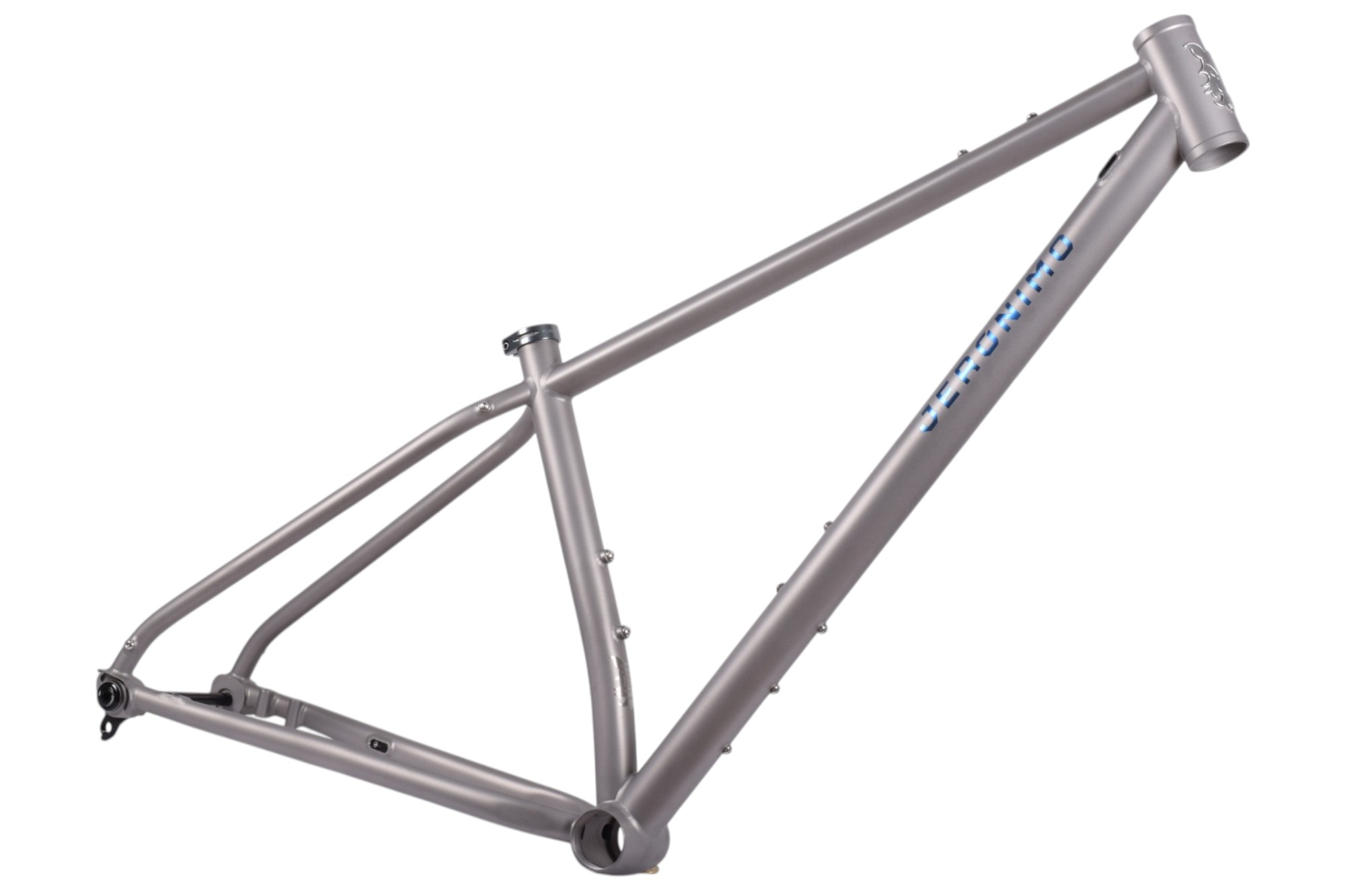

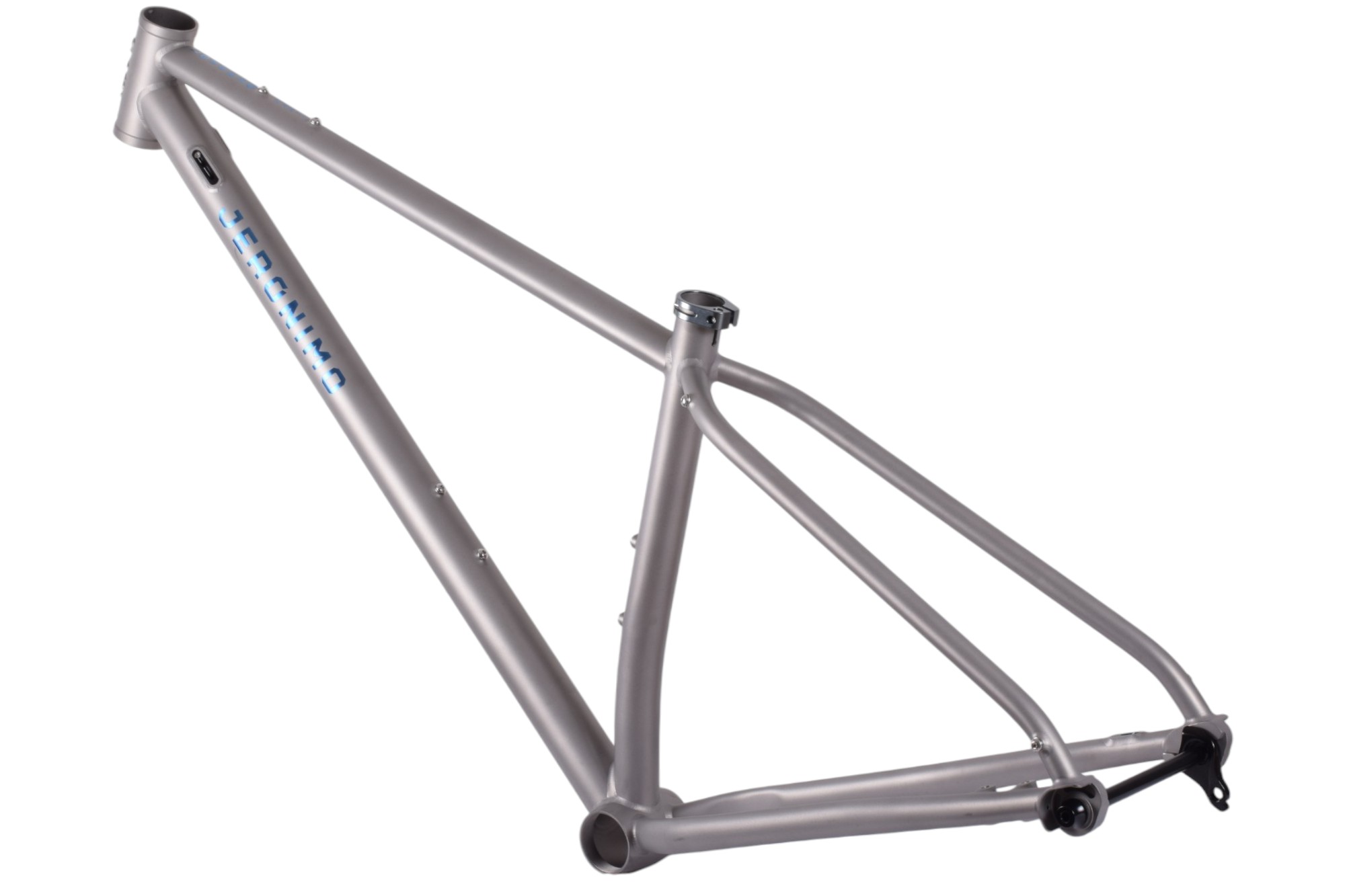

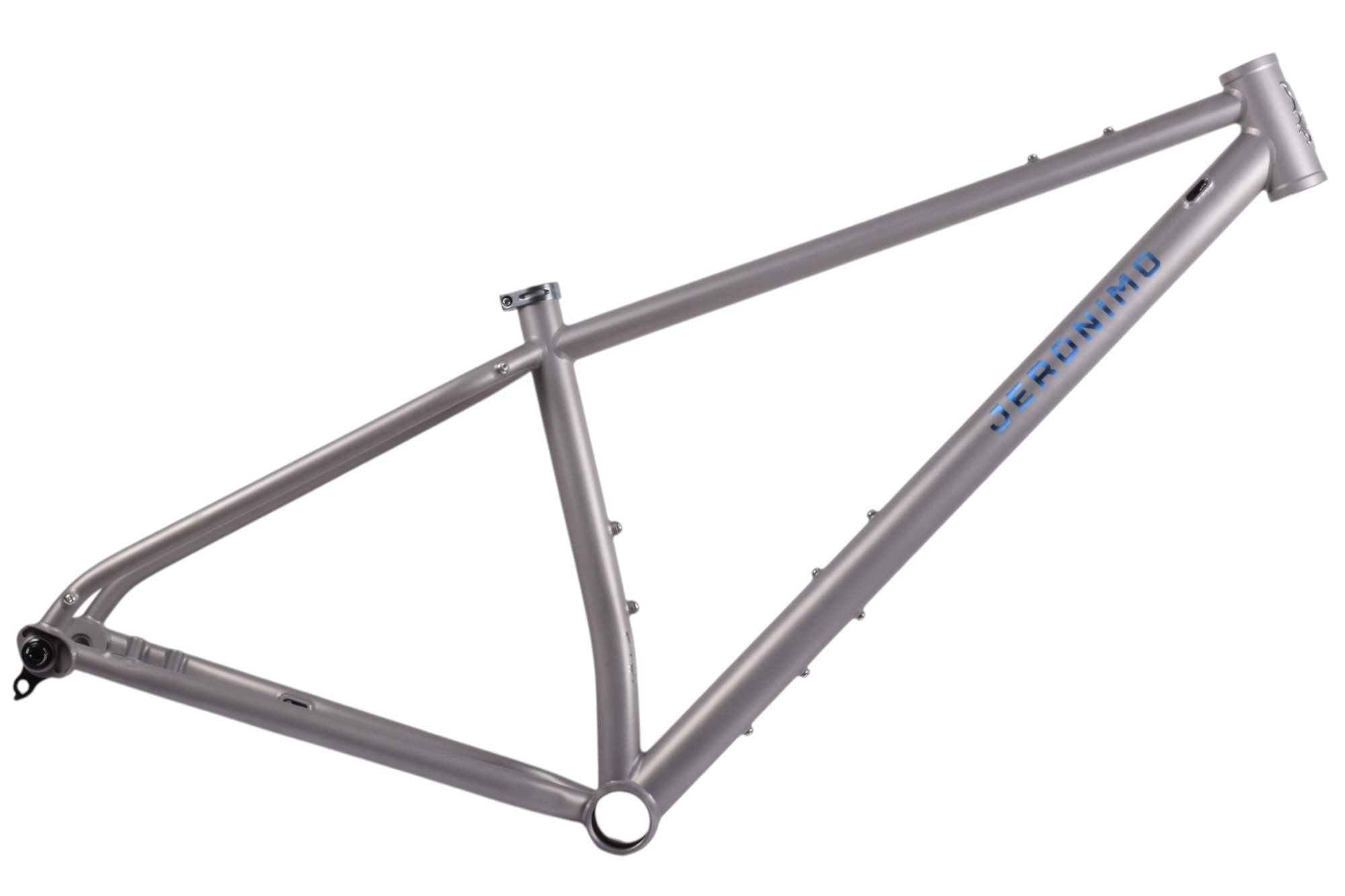

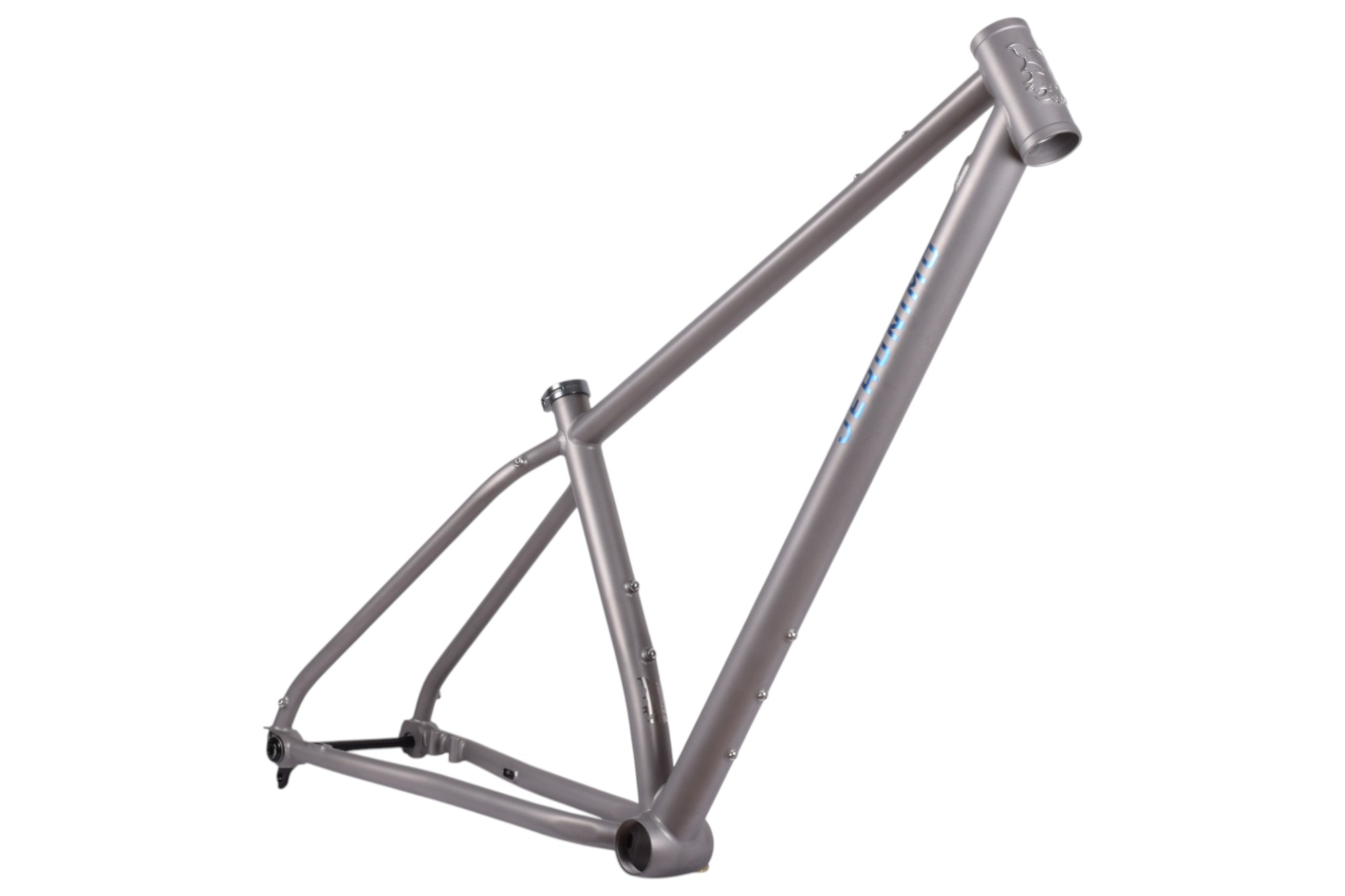

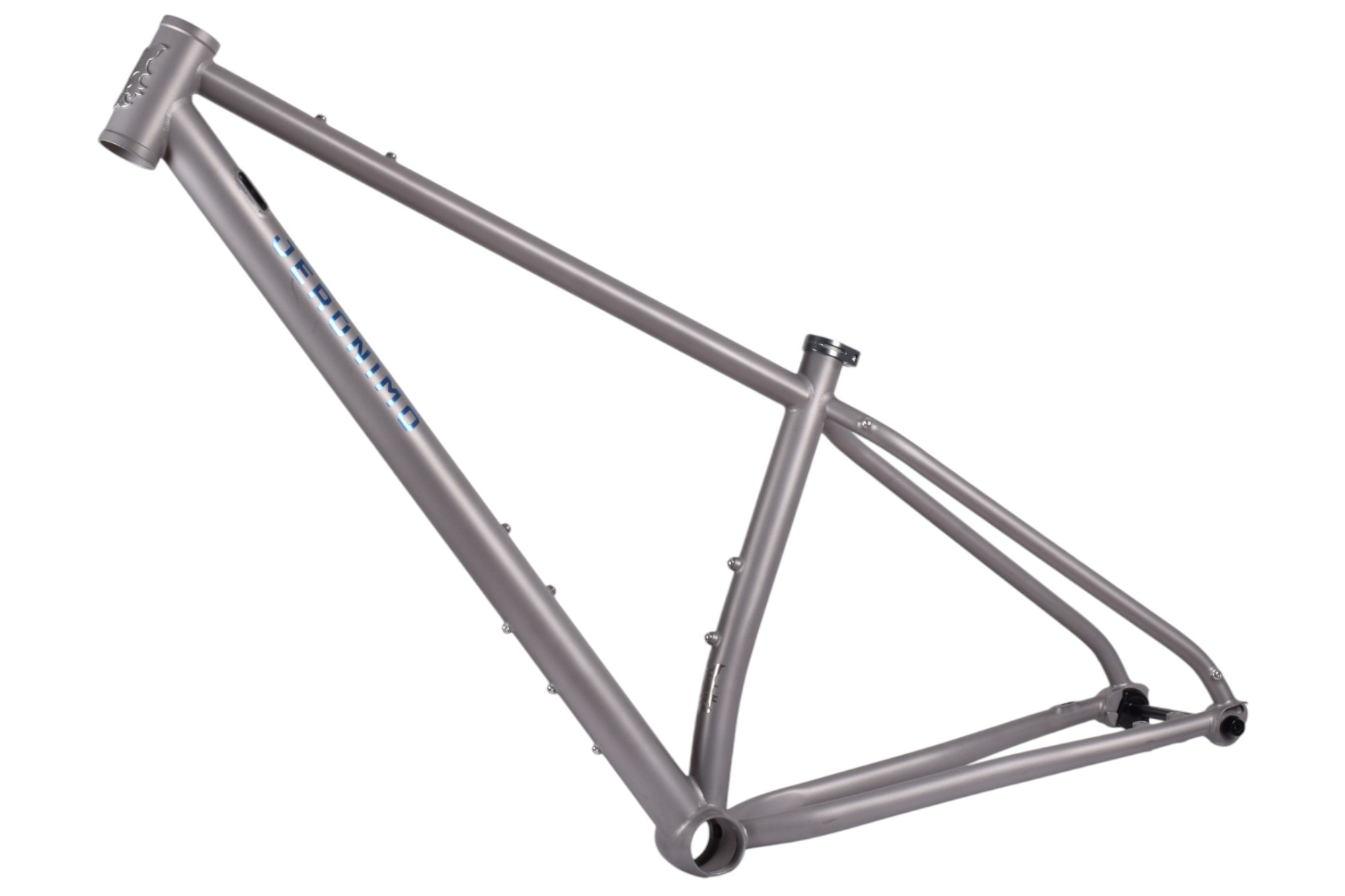

The frame is manufactured in Ti3Al2.5V titanium double butted tubing, with an advanced study of geometry designed by Jerónimo, has been tested by riders with excellent results in all conditions.
The frame is compatible with the new SRAM UDH Full Mount rear derailleurs.

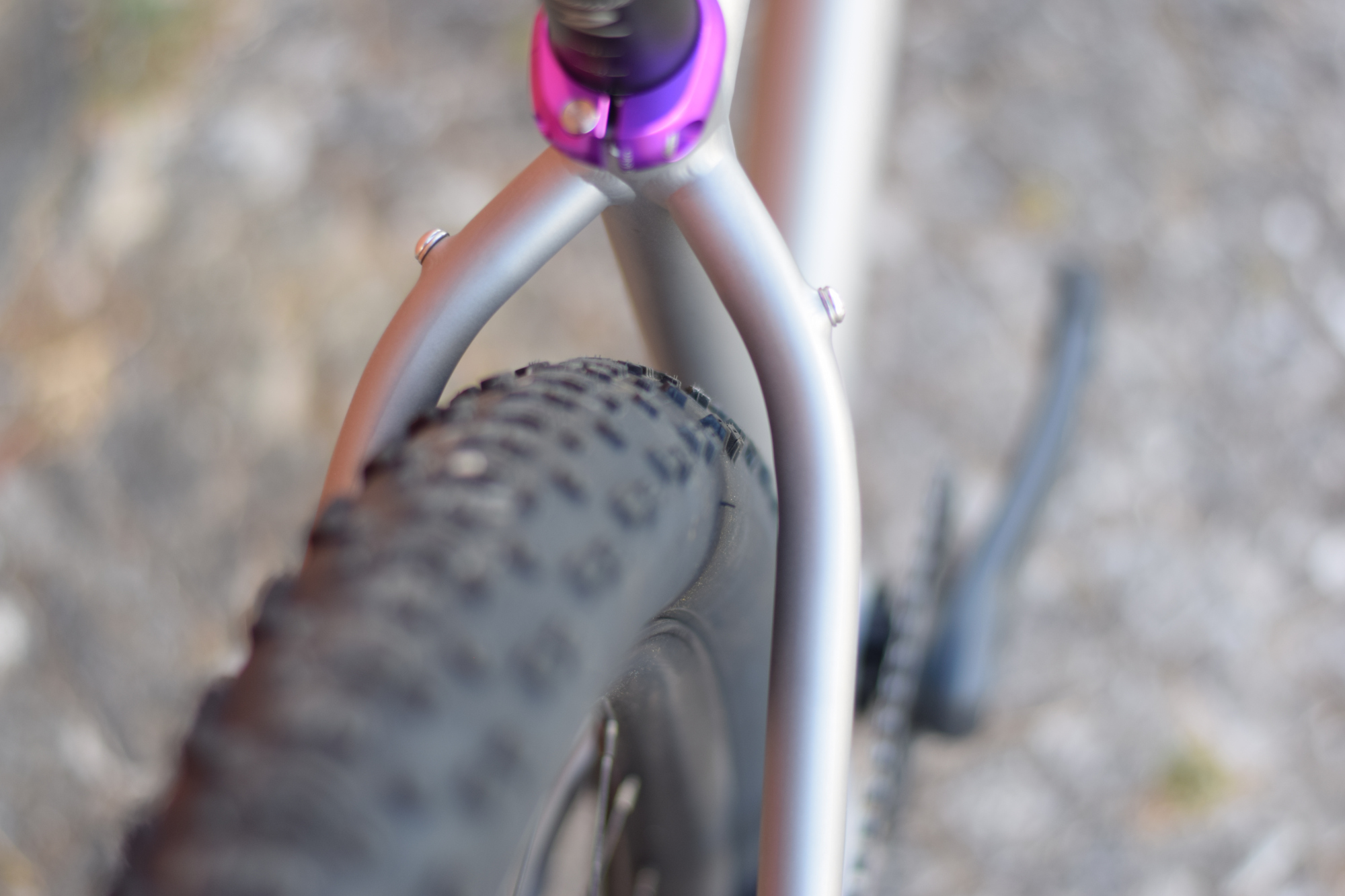

Designed for 490 mm to 530 mm forks and 32″ tyres up to 2.4″, it feels safe and stable on descents and in corners.
Custom designed frame – drop us a line at info@jeronimocycles.com
Wheels 32″ up to 2.4″
Frame Ti3Al2.5V double butted
Geometry Downcountry

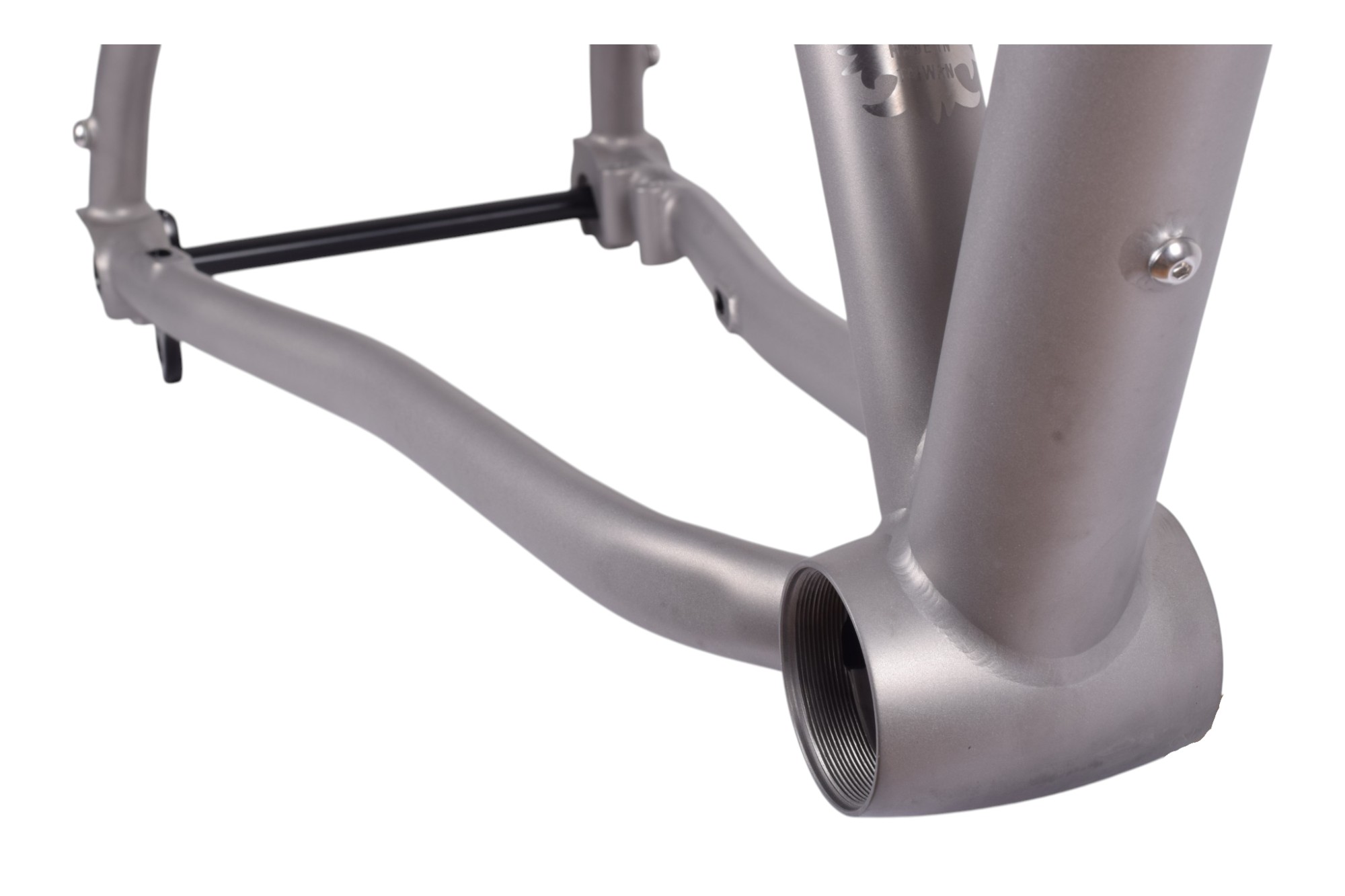

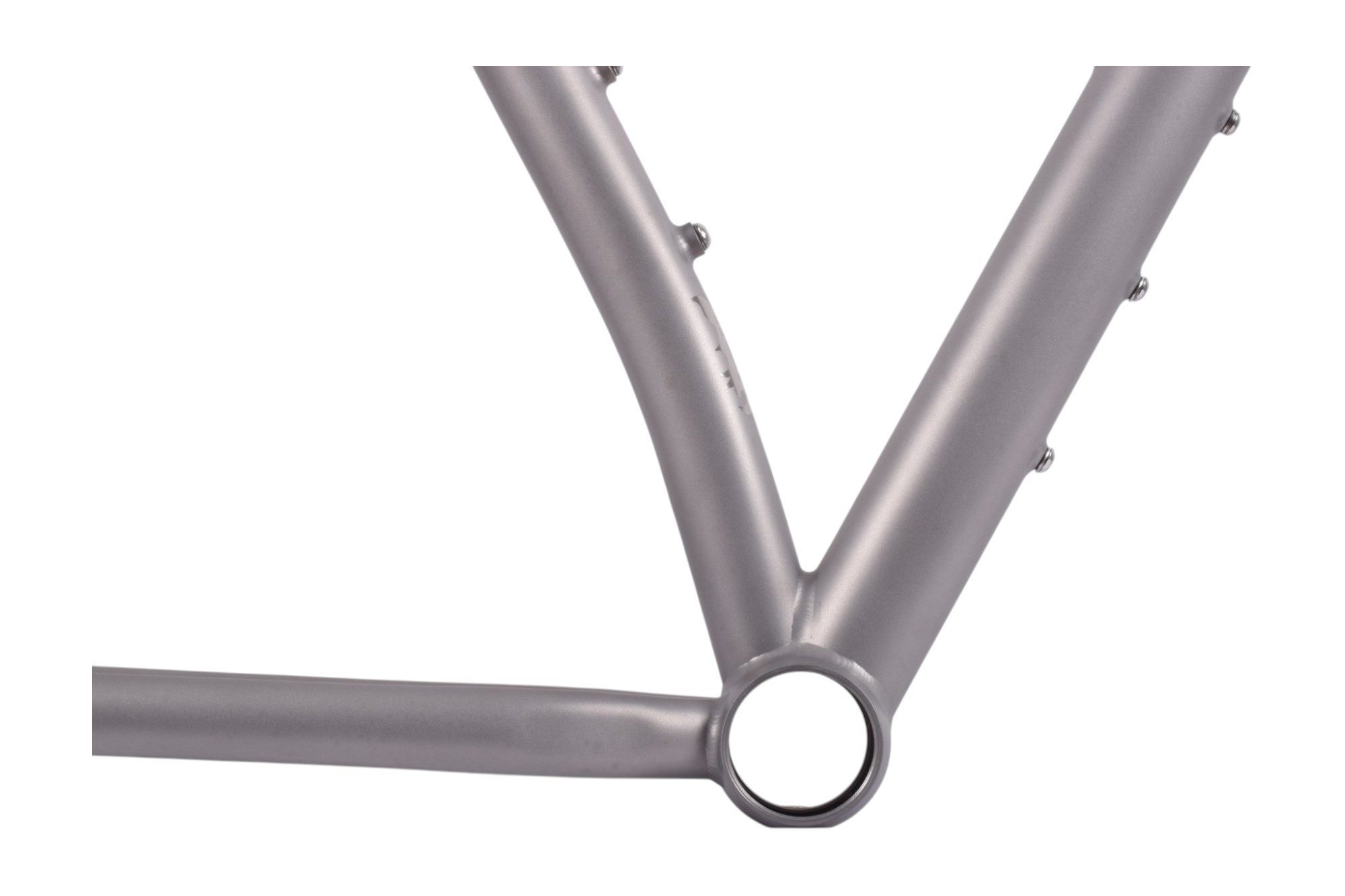

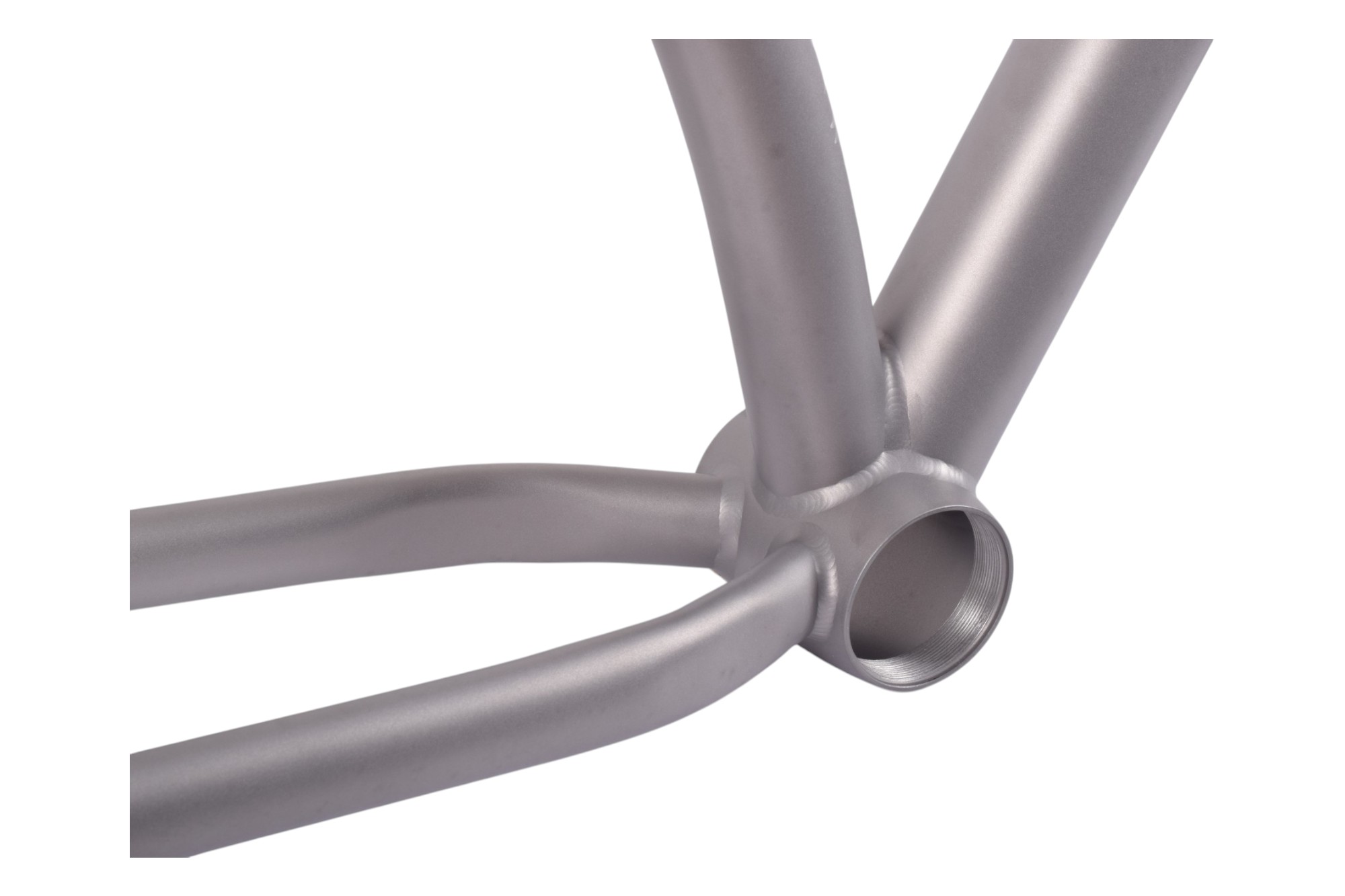

73mm T47 bottom bracket

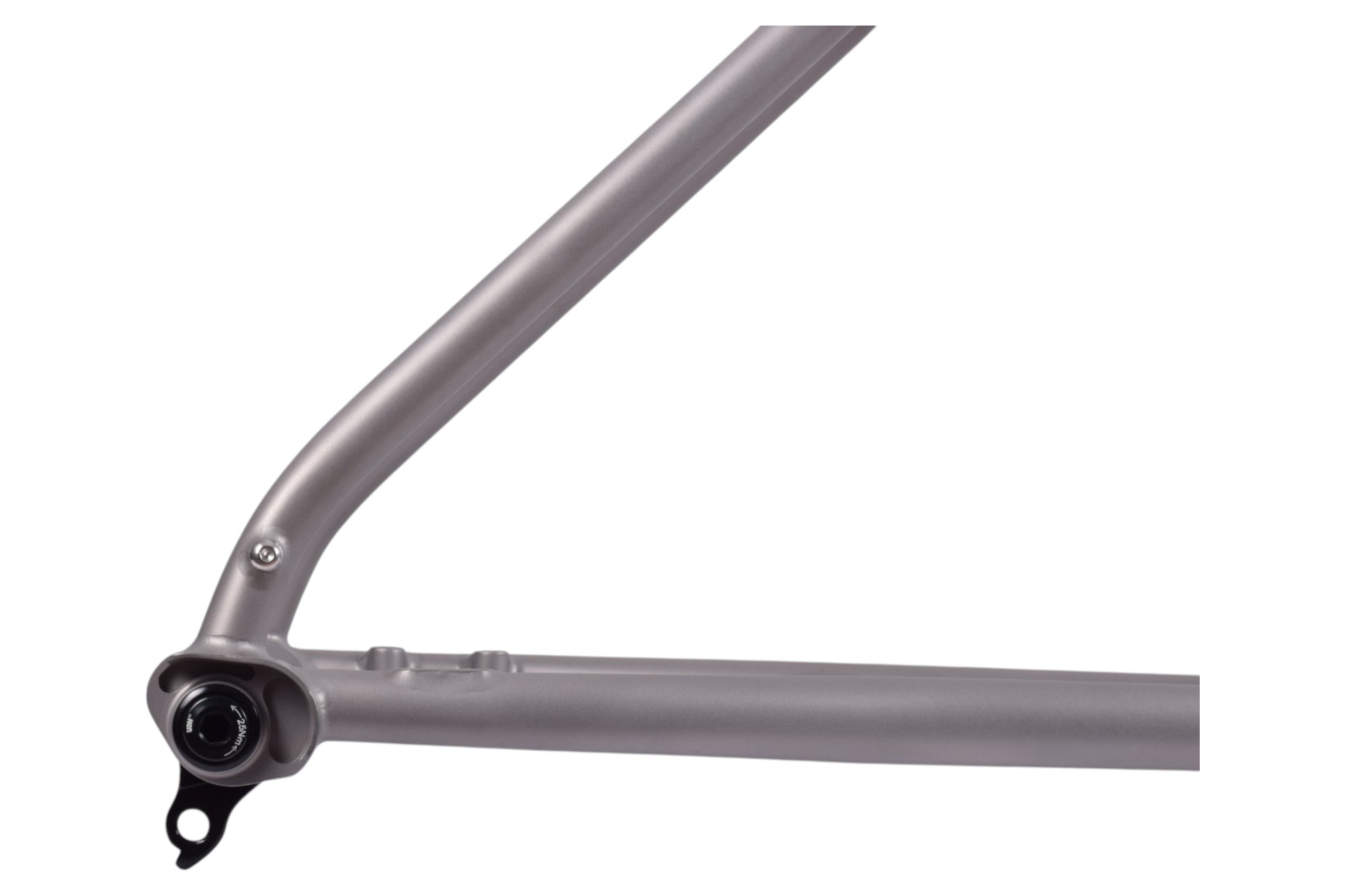

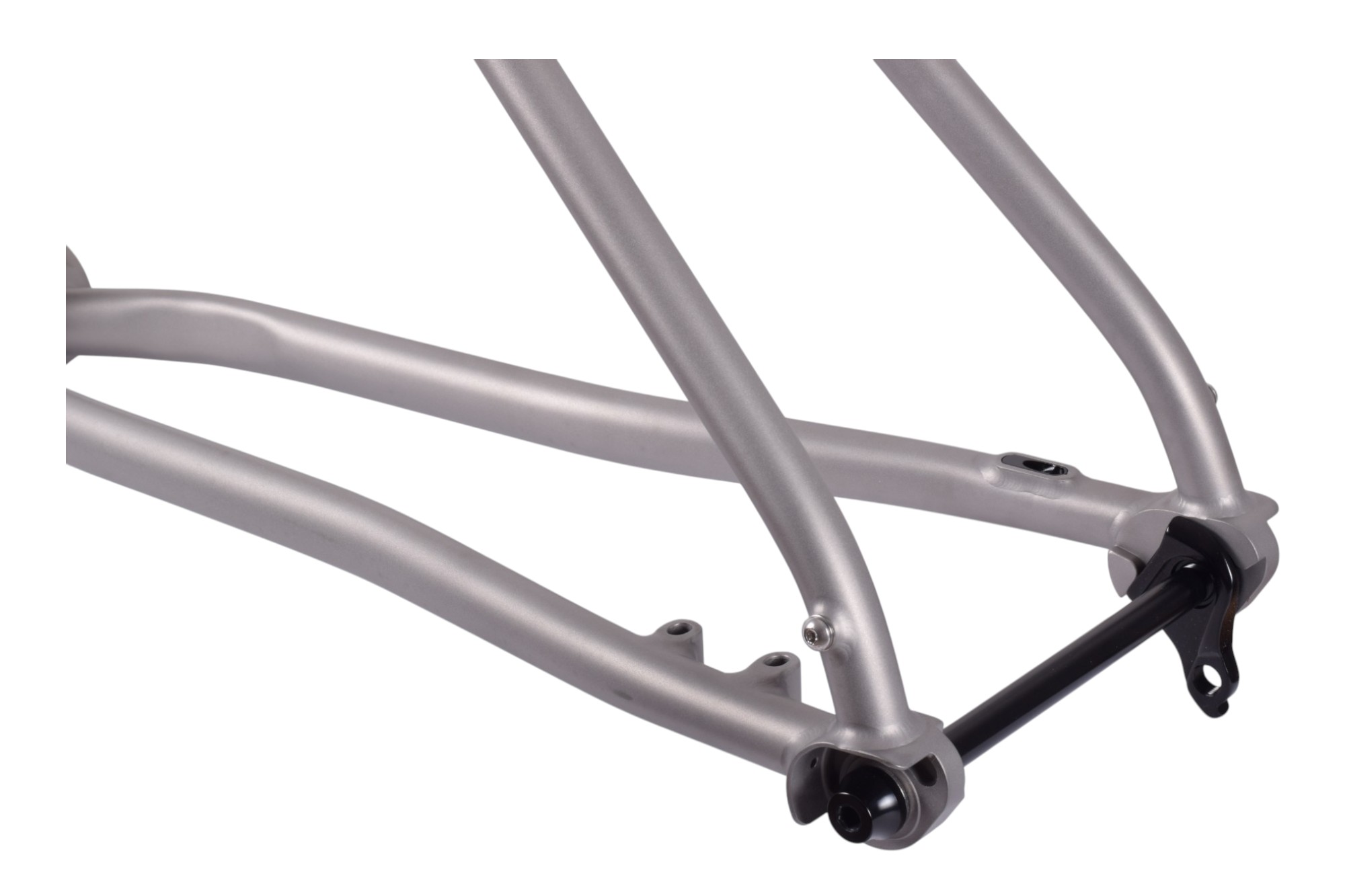

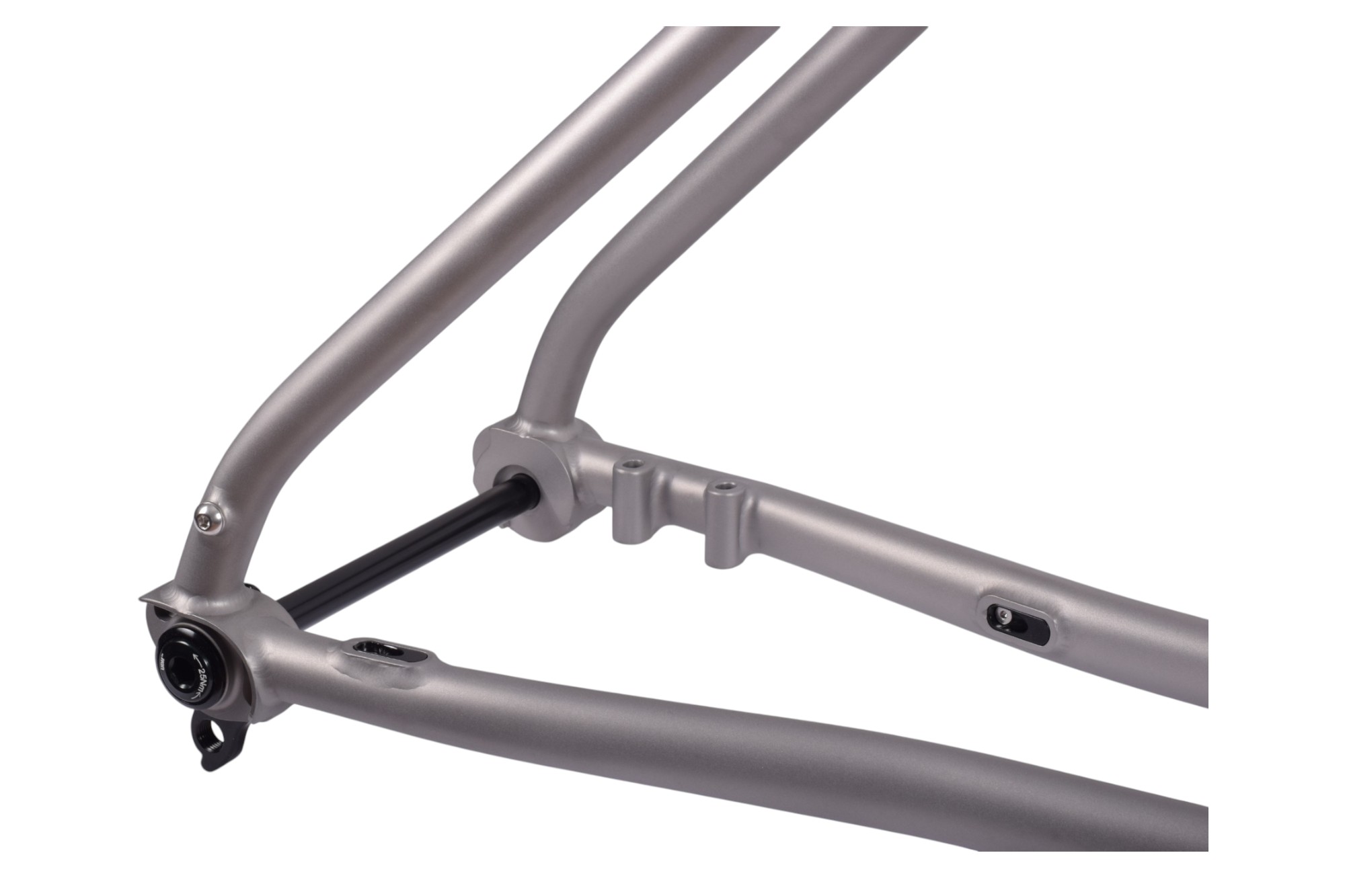

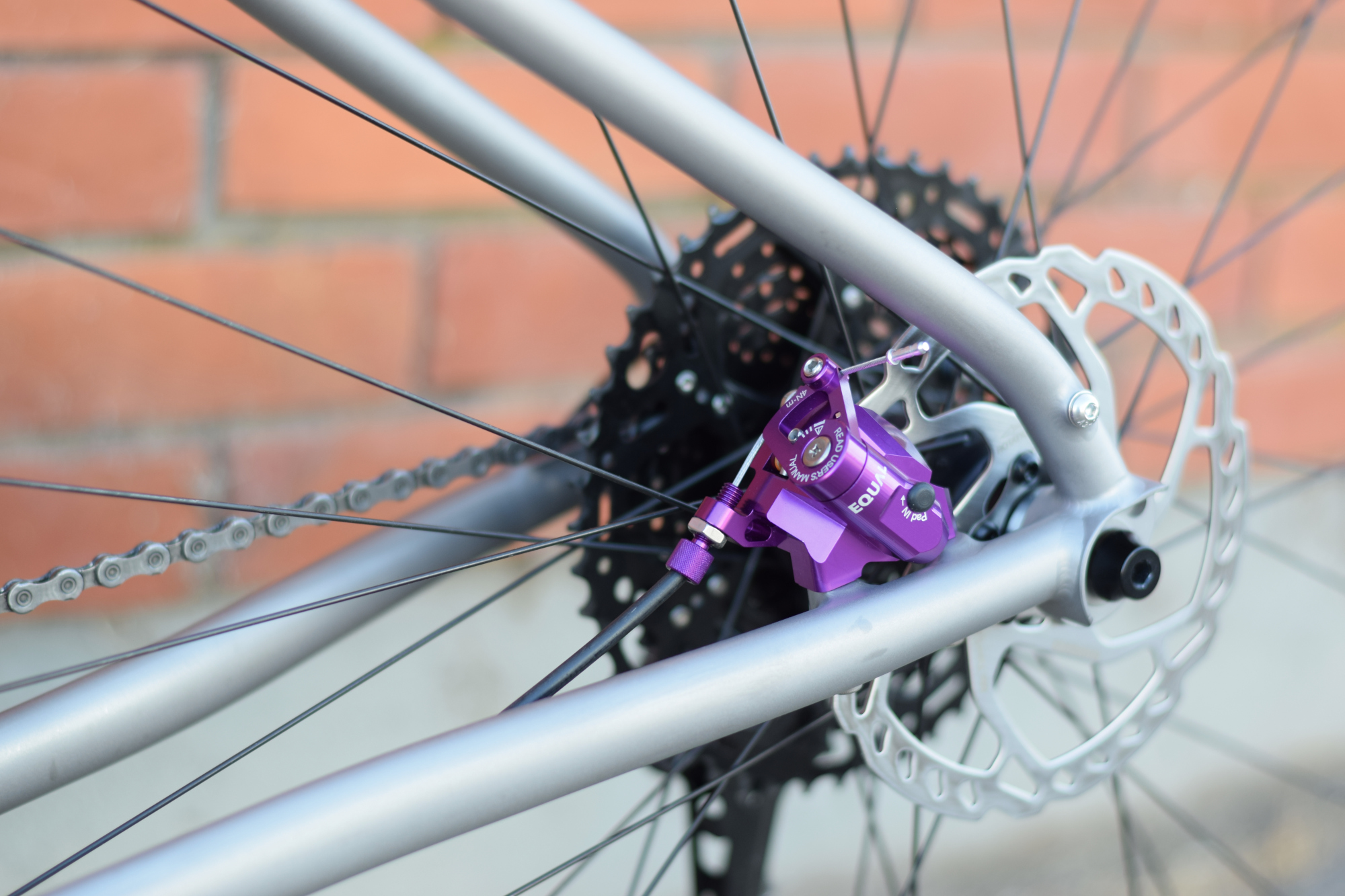

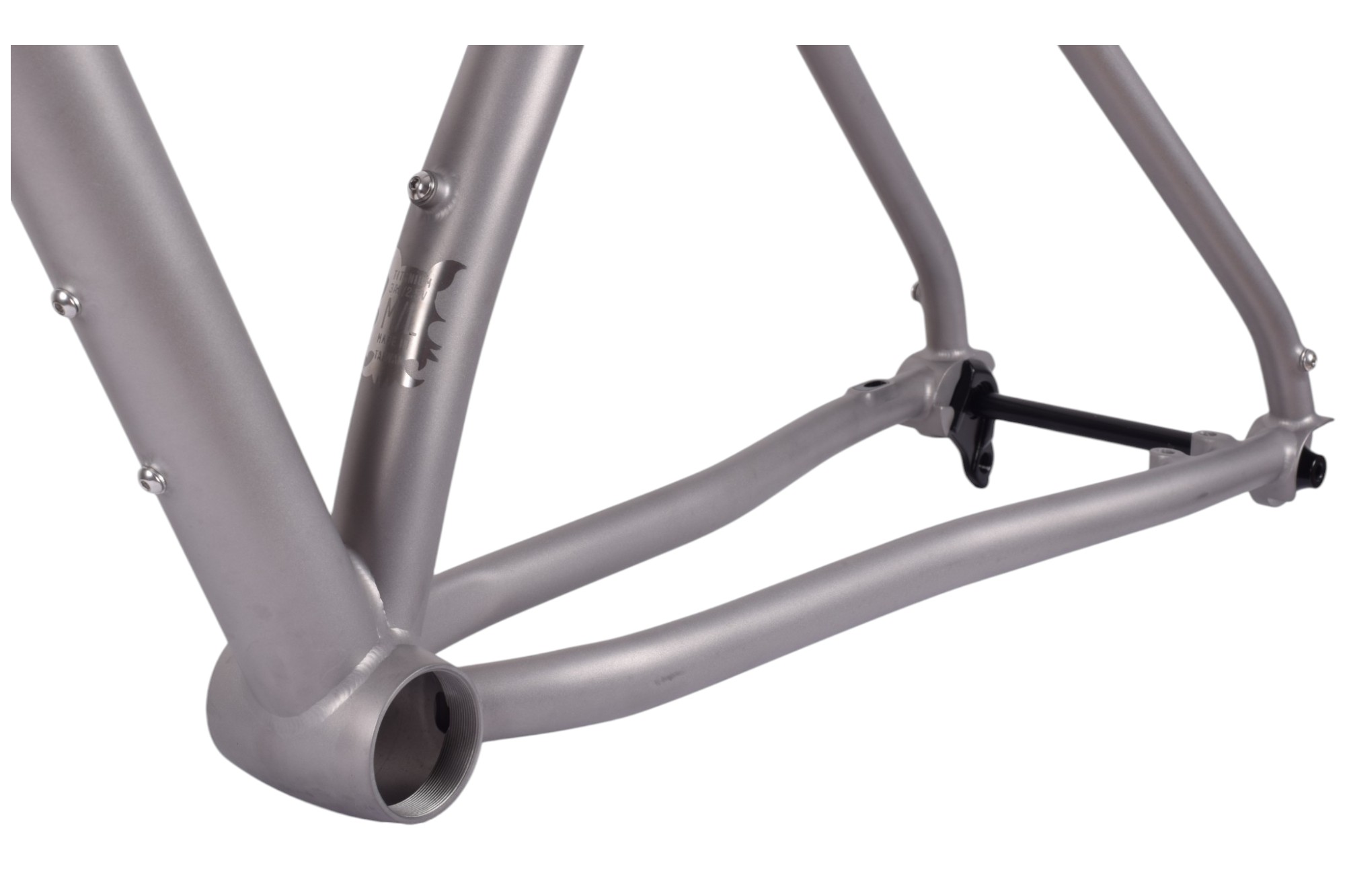

BOOST rear axle with interchangable dropouts.

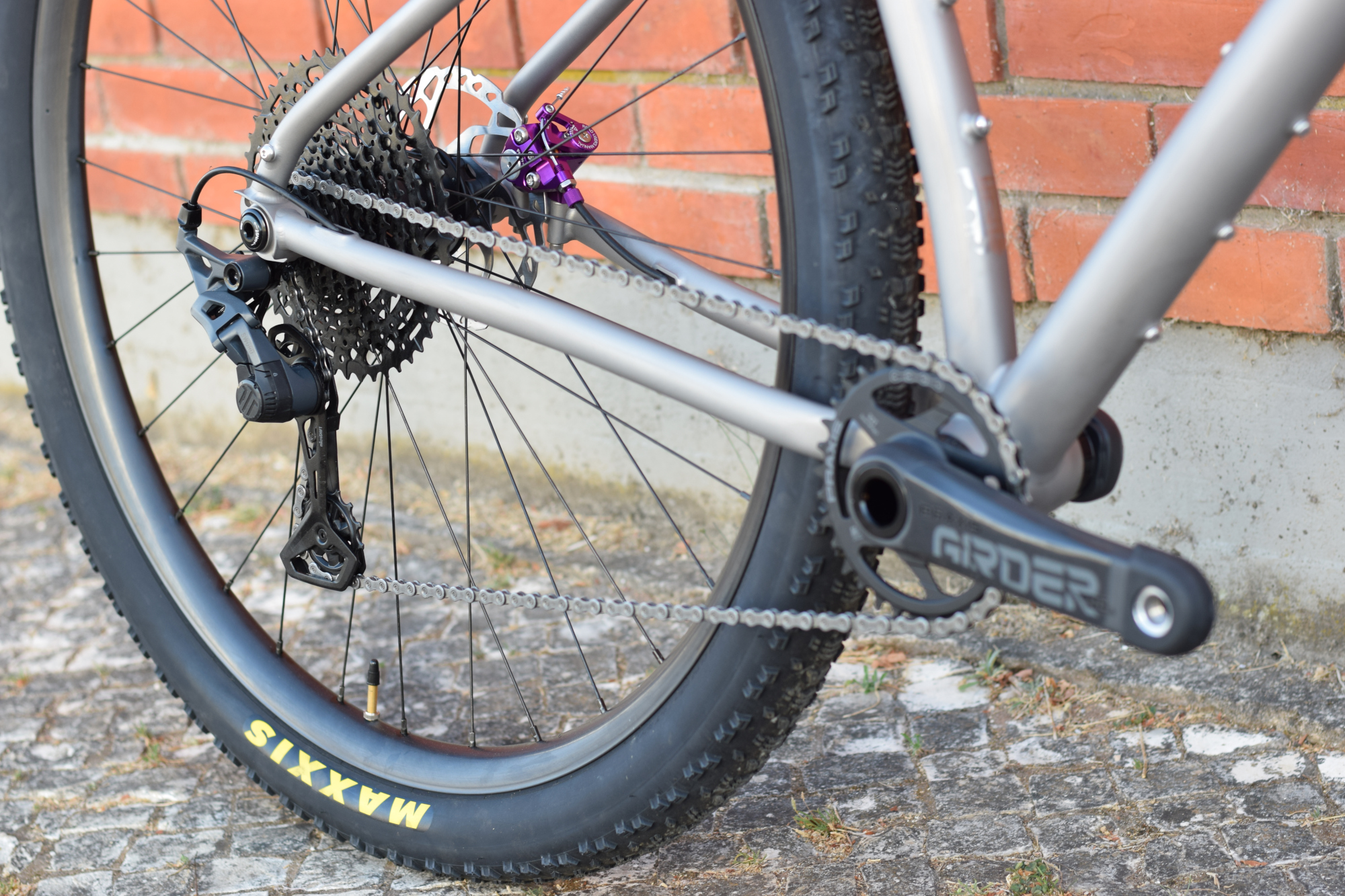

Compatible with SRAM UDH Full Mount rear derailleur
Eyelets on seat stays for rear rack

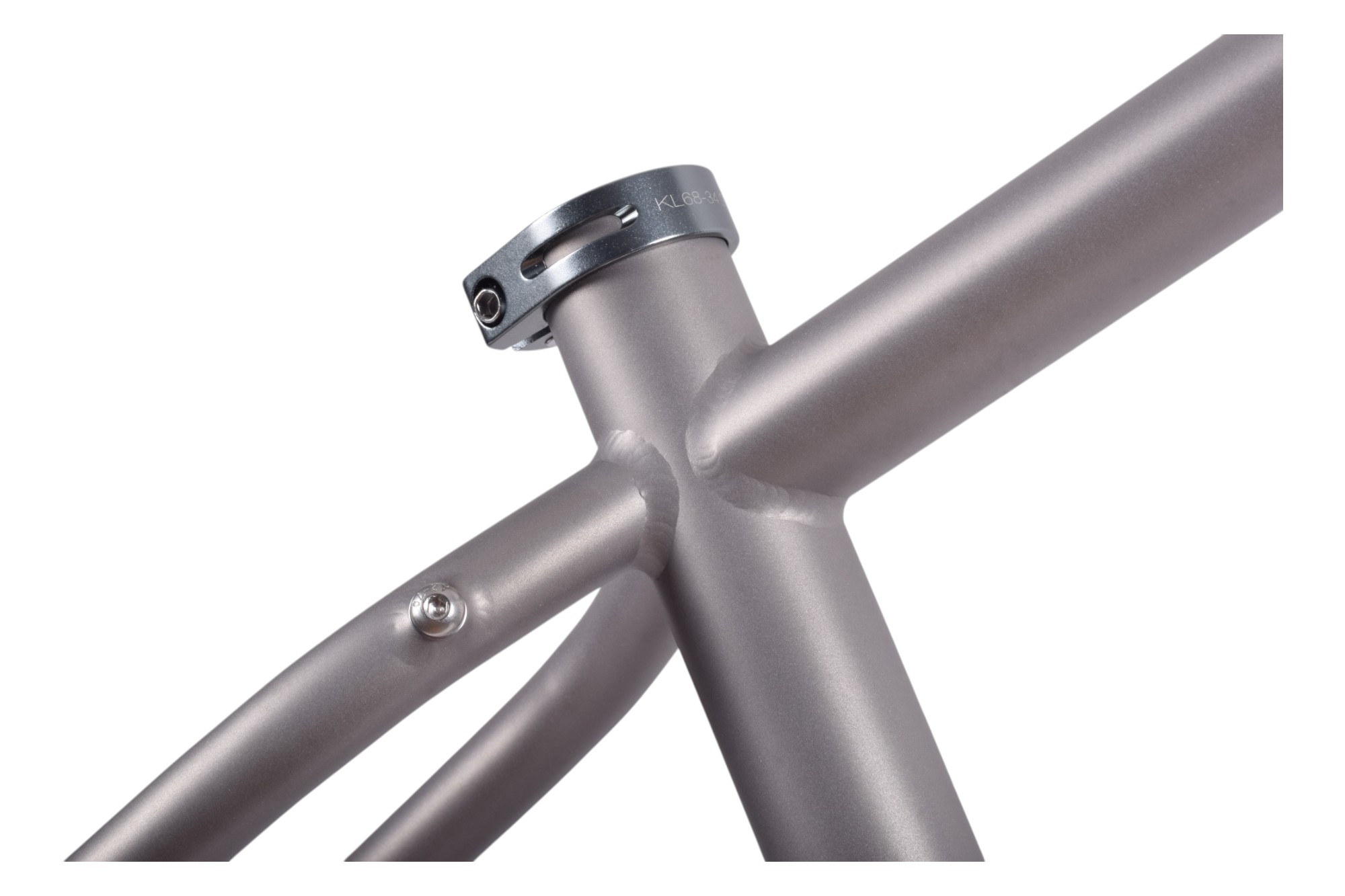

34.9mm seatpost clamp included

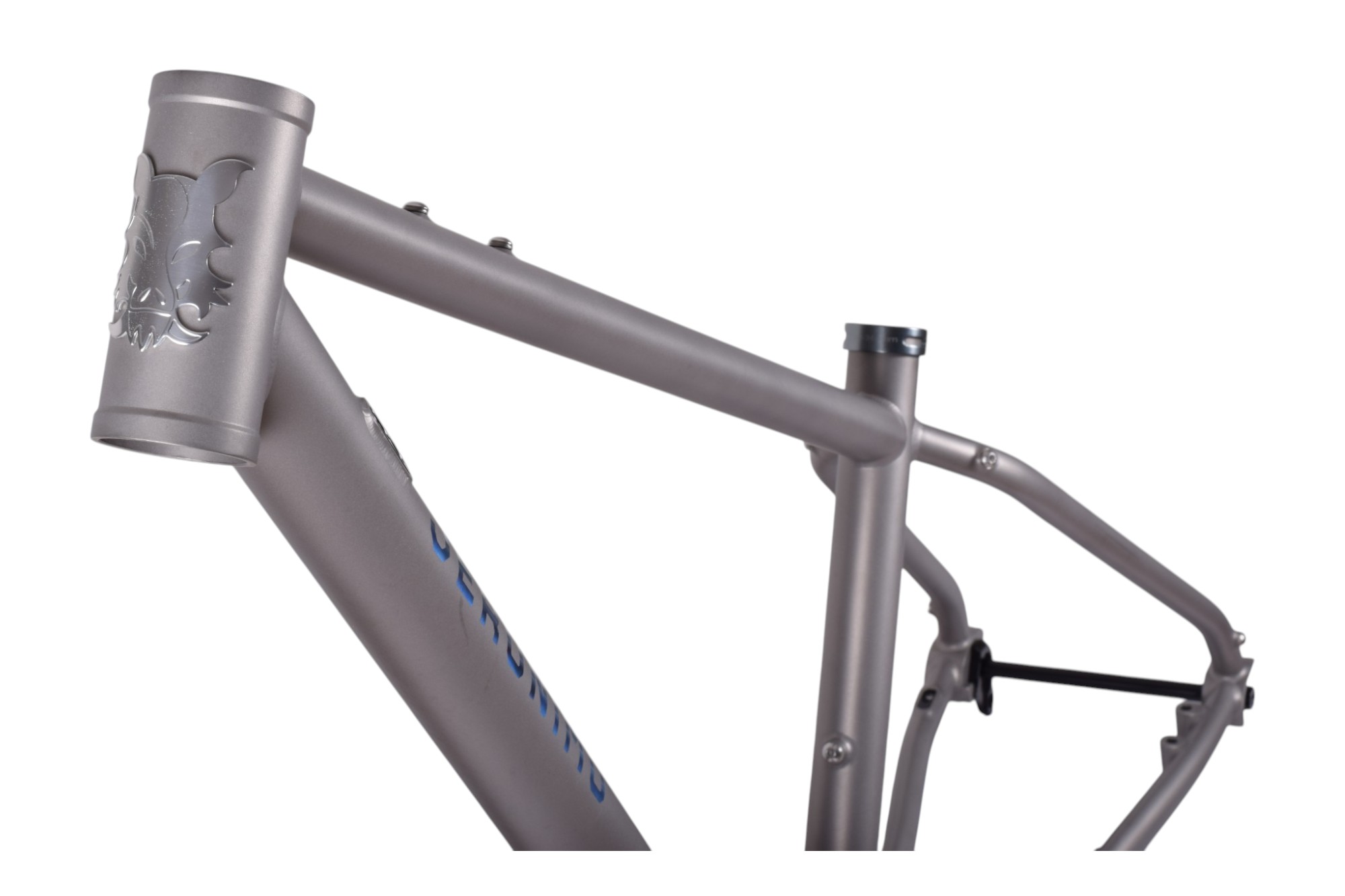

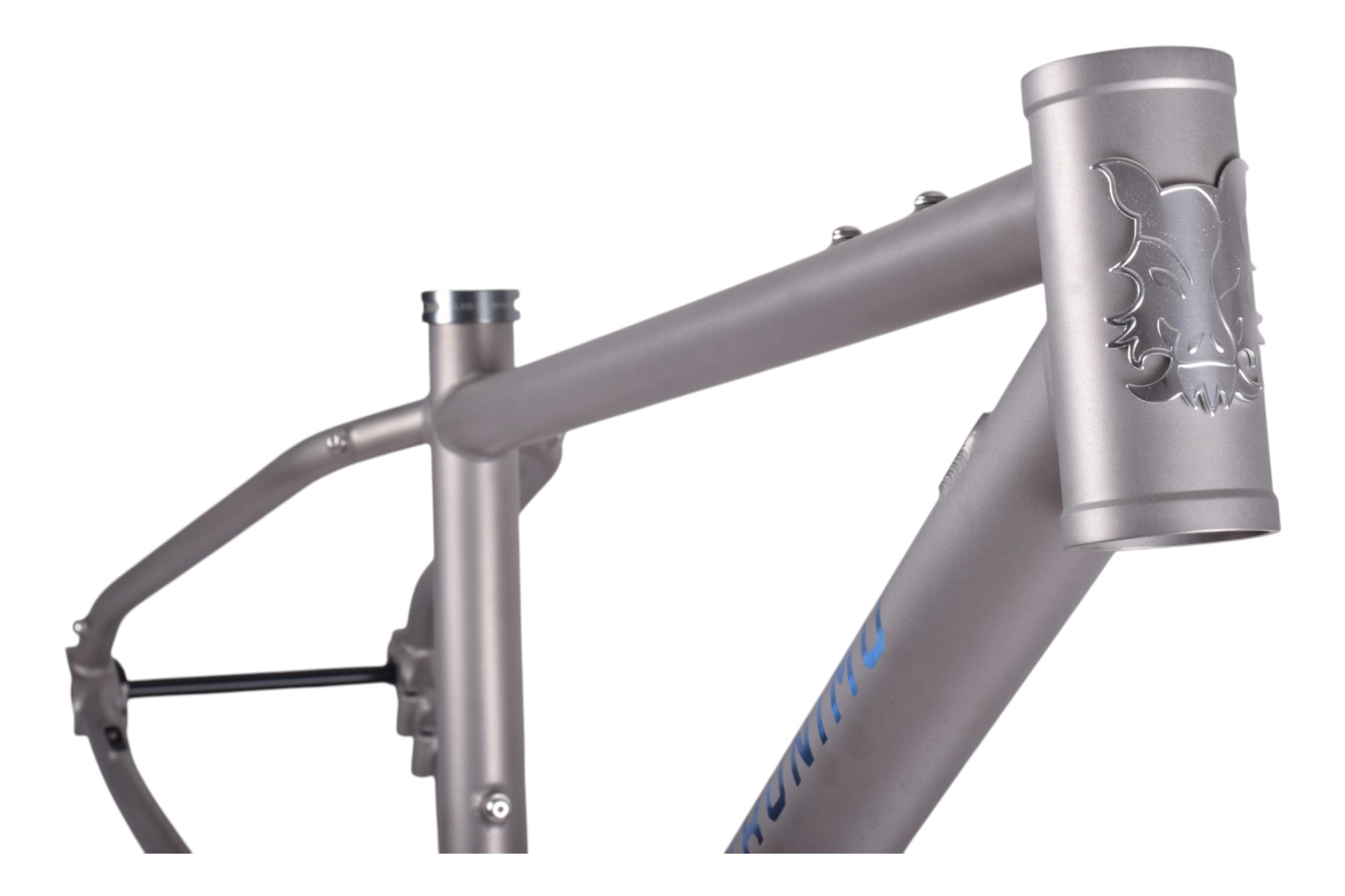

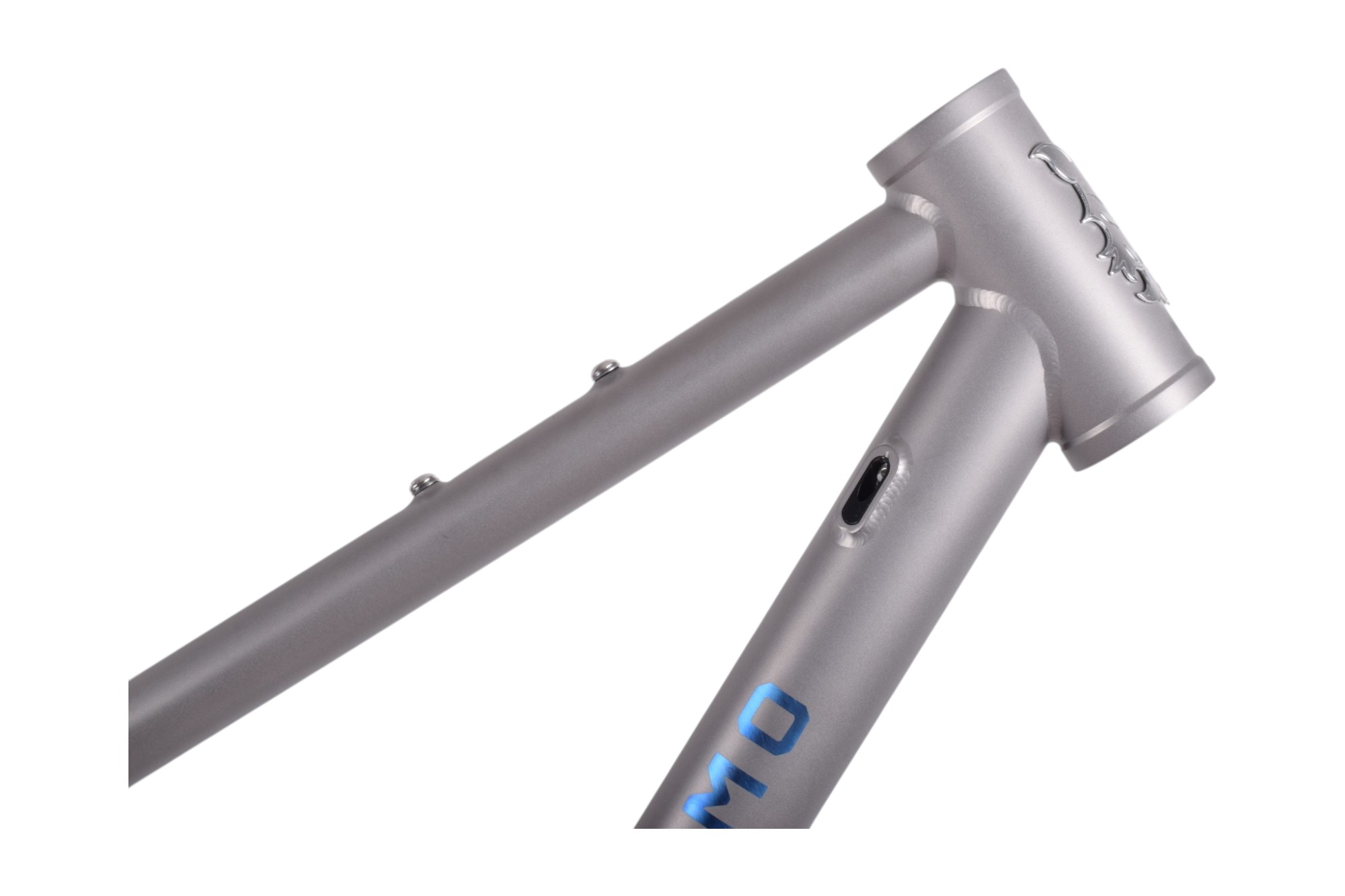

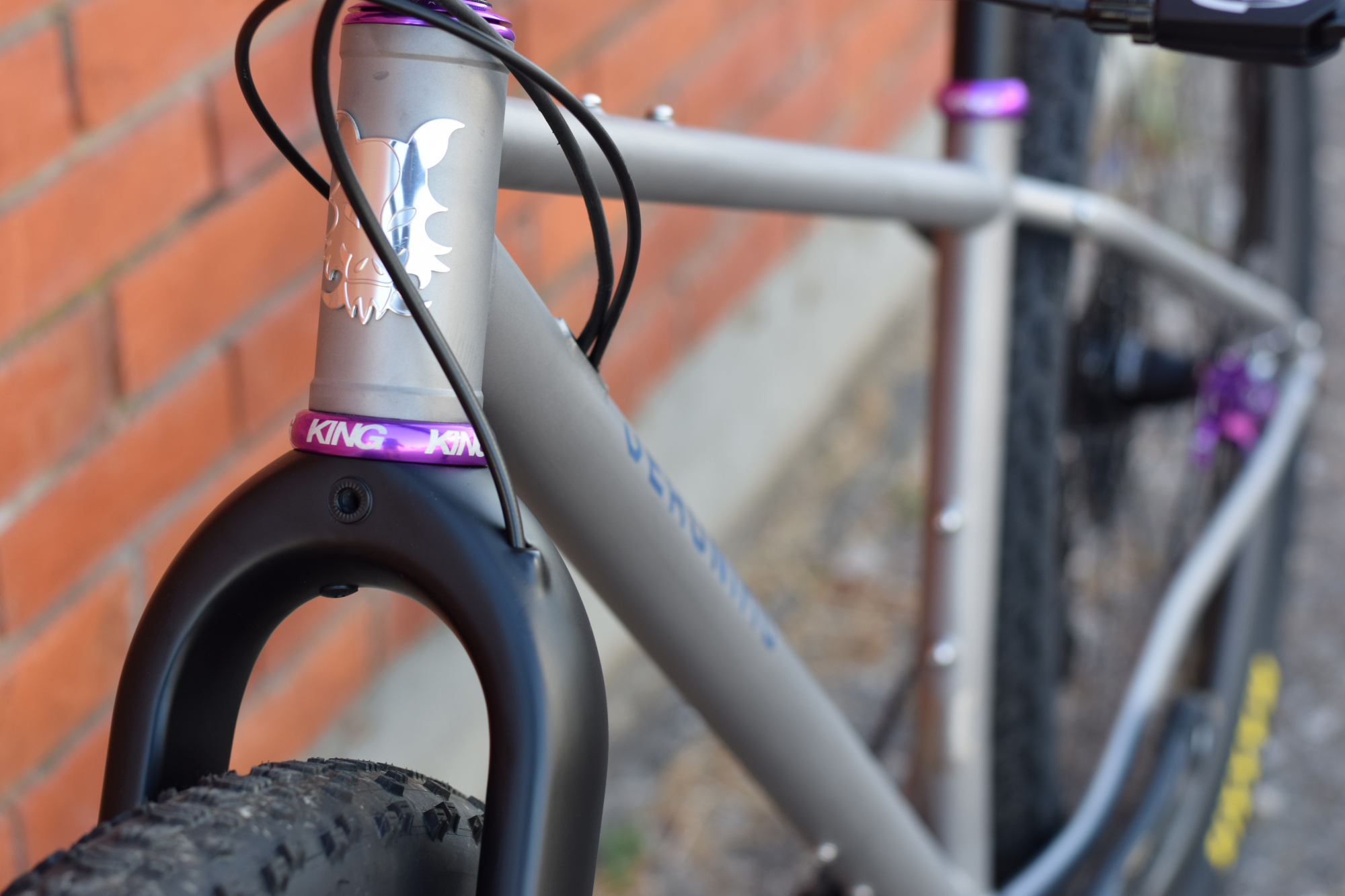

TR44 head tube fro ZS44/EC44 headset type
For 31.6mm seatpost
Compatible with internal dropper seatpost control
Weight for M/L size: 1,950 g
Thru Axle, seat clamp and dropouts are included with the frame
Forks from 490mm to 530mm A-C with 44mm offset
Our models are named after unique characters that once lived in the small village in Northeastern Portugal where Pedro Jerónimo’s family was born and raised. Latin and Greek ran through Lorenzo like second nature — sharp, precise, unmistakable. Life had once pointed him toward the priesthood, but he chose the classroom instead, and loved it. In quieter hours, he kept birds in the yard, tried his hand at unconventional crops, and gathered for games of “Sueca,” a traditional Portuguese card game. A man of few words, Lorenzo spoke rarely — but when he did, he was almost never wrong.
1.999,00 € – 2.299,00 €
FREE EU SHIPPING INCLUDED.
Product safety
Read the user manual before assembly and use. We recommend assembly by a qualified professional mechanic, using only the components and dimensions stated in the specifications. Check the frame regularly and stop riding if you notice cracks, deformation or unusual noises. User manual (PDF)
